Download Datasheet

PTMA401120N1AZ

Texas Instruments OEM P/N：PTMA401120N1AZ
rohs compliant DC DC CONVERTER 12V 10W

8,840 pcs

N/A

5-SMD Module

Price: N/A
QUICK RFQ

Specifications

Series PTMA40xx (10W) Type Isolated Module
Number of Outputs 1 Voltage - Input (Min) 36V
Voltage - Input (Max) 75V Voltage - Output 1 12V
Voltage - Output 2 - Voltage - Output 3 -
Voltage - Output 4 - Current - Output (Max) 1A
Power (Watts) 10 W Voltage - Isolation 1.5 kV
Applications ITE (Commercial) Features OCP, OVP, UVLO
Operating Temperature -40°C ~ 85°C Efficiency 82%
Mounting Type Surface Mount Package / Case 5-SMD Module
Size / Dimension 1.10" L x 0.96" W x 0.36" H (27.9mm x 24.4mm x 9.1mm) Supplier Device Package -
Control Features - Approval Agency -
Standard Number -

Related Products

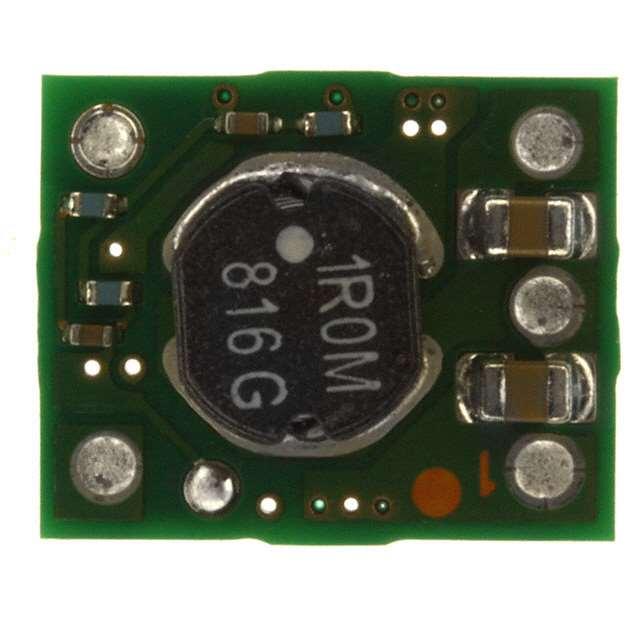

PTH04070WAZ
PTH04070WAZ

DC DC CONVERTER 0.9-3.6V

5-SMD Module View
PTH08080WAZ
PTH08080WAZ

DC DC CONVERTER 0.9-5.5V

5-SMD Module View

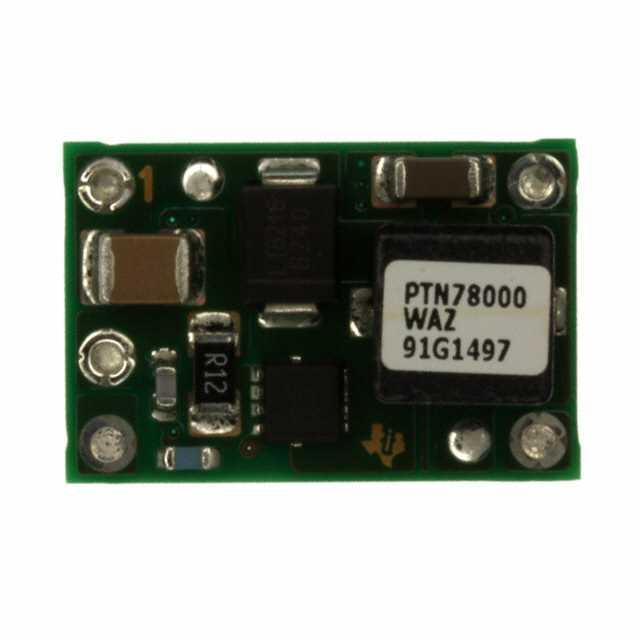

PTN78000WAZT
