Download Datasheet

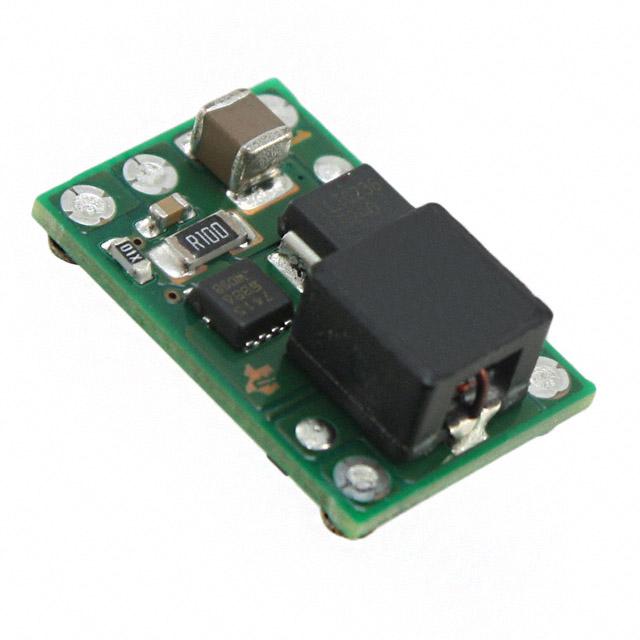

PTH08080WAZ

Texas Instruments OEM P/N：PTH08080WAZ
rohs compliant DC DC CONVERTER 0.9-5.5V

8,300 pcs

N/A

5-SMD Module

$7.463 (For reference only.)
QUICK RFQ

Specifications

Series PTH08080W Type Non-Isolated PoL Module
Number of Outputs 1 Voltage - Input (Min) 4.5V
Voltage - Input (Max) 18V Voltage - Output 1 0.9 ~ 5.5V
Voltage - Output 2 - Voltage - Output 3 -
Voltage - Output 4 - Current - Output (Max) 2.25A
Power (Watts) - Voltage - Isolation -
Applications ITE (Commercial) Features -
Operating Temperature -40°C ~ 85°C Efficiency 93.5%
Mounting Type Surface Mount Package / Case 5-SMD Module
Size / Dimension 0.60" L x 0.50" W x 0.35" H (15.2mm x 12.7mm x 8.9mm) Supplier Device Package -
Control Features - Approval Agency -
Standard Number -
