Download Datasheet

PTH04070WAZ

Texas Instruments OEM P/N：PTH04070WAZ
rohs compliant DC DC CONVERTER 0.9-3.6V

7,020 pcs

N/A

5-SMD Module

$7.191 (For reference only.)
QUICK RFQ

Specifications

Series PTH04070W Type Non-Isolated PoL Module
Number of Outputs 1 Voltage - Input (Min) 3V
Voltage - Input (Max) 5.5V Voltage - Output 1 0.9 ~ 3.6V
Voltage - Output 2 - Voltage - Output 3 -
Voltage - Output 4 - Current - Output (Max) 3A
Power (Watts) - Voltage - Isolation -
Applications ITE (Commercial) Features OCP, UVLO
Operating Temperature -40°C ~ 85°C Efficiency 92%
Mounting Type Surface Mount Package / Case 5-SMD Module
Size / Dimension 0.50" L x 0.40" W x 0.32" H (12.7mm x 10.2mm x 8.1mm) Supplier Device Package -
Control Features - Approval Agency -
Standard Number -

Related Products

PTH08080WAZ
PTH08080WAZ

DC DC CONVERTER 0.9-5.5V

5-SMD Module View
PTN78000WAZT
PTN78000WAZT

DC DC CONVERTER 2.5-12.6V

5-SMD Module View
PTN78000WAZ
PTN78000WAZ

DC DC CONVERTER 2.5-12.6V

5-SMD Module View

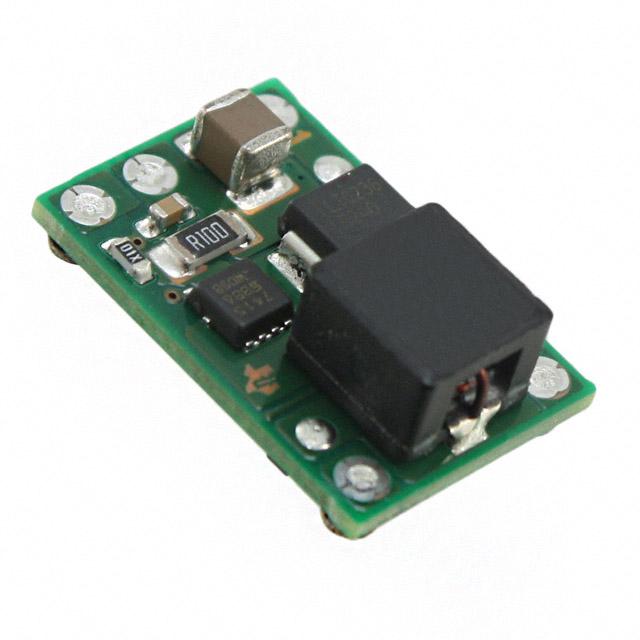

PTN78000AAZ
