Download Datasheet

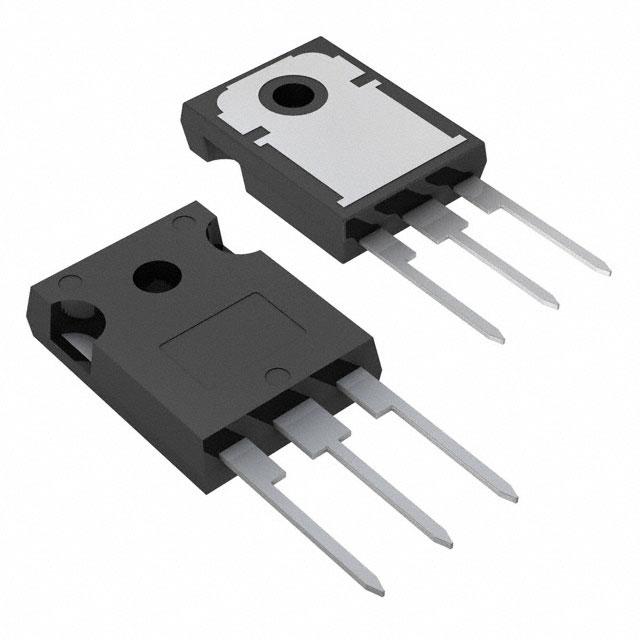

STW20NK50Z

STMicroelectronics OEM P/N：STW20NK50Z
rohs compliant MOSFET N-CH 500V 17A TO247-3

14,340 pcs

N/A

TO-247-3

$4.0205 (For reference only.)
QUICK RFQ

Specifications

Series SuperMESH™ FET Type N-Channel
Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 500 V
Current - Continuous Drain (Id) @ 25°C 17A (Tc) Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 270mOhm @ 8.5A, 10V Vgs(th) (Max) @ Id 4.5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs 119 nC @ 10 V Vgs (Max) ±30V
Input Capacitance (Ciss) (Max) @ Vds 2600 pF @ 25 V FET Feature -
Power Dissipation (Max) 190W (Tc) Operating Temperature 150°C (TJ)
Grade - Qualification -
Mounting Type Through Hole Supplier Device Package TO-247-3
Package / Case TO-247-3

Related Products

TM8050H-8W
TM8050H-8W

SCR 800V 80A TO247

TO-247-3 View

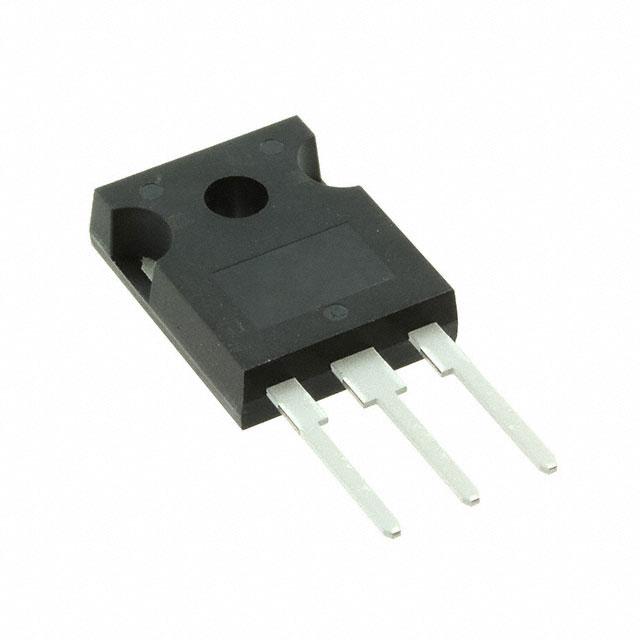

TN5050H-12WY
TN5050H-12WY

SCR 1.2KV 80A TO247-3

TO-247-3 View

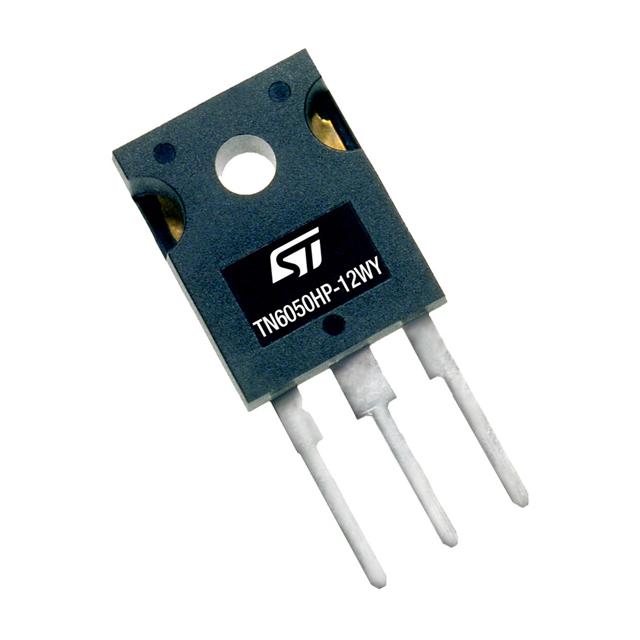

TN6050HP-12WY
