Download Datasheet

TM8050H-8W

STMicroelectronics OEM P/N：TM8050H-8W
rohs compliant SCR 800V 80A TO247

24,840 pcs

N/A

TO-247-3

$5.7035 (For reference only.)
QUICK RFQ

Specifications

Series - Voltage - Off State 800 V
Voltage - Gate Trigger (Vgt) (Max) 1.5 V Current - Gate Trigger (Igt) (Max) 50 mA
Voltage - On State (Vtm) (Max) 1.55 V Current - On State (It (AV)) (Max) 50 A
Current - On State (It (RMS)) (Max) 80 A Current - Hold (Ih) (Max) 100 mA
Current - Off State (Max) 20 µA Current - Non Rep. Surge 50, 60Hz (Itsm) 670A, 731A
SCR Type Sensitive Gate Operating Temperature -40°C ~ 150°C (TJ)
Grade - Qualification -
Mounting Type Through Hole Package / Case TO-247-3
Supplier Device Package TO-247-3

Related Products

TN5050H-12WY
TN5050H-12WY

SCR 1.2KV 80A TO247-3

TO-247-3 View
TN6050HP-12WY
TN6050HP-12WY

AVAILABLE IN TO-247 HIGH POWER P

TO-247-3 View
TN4050HP-12WY
TN4050HP-12WY

1200 V, 40 A AUTOMOTIVE GRADE AE

TO-247-3 View

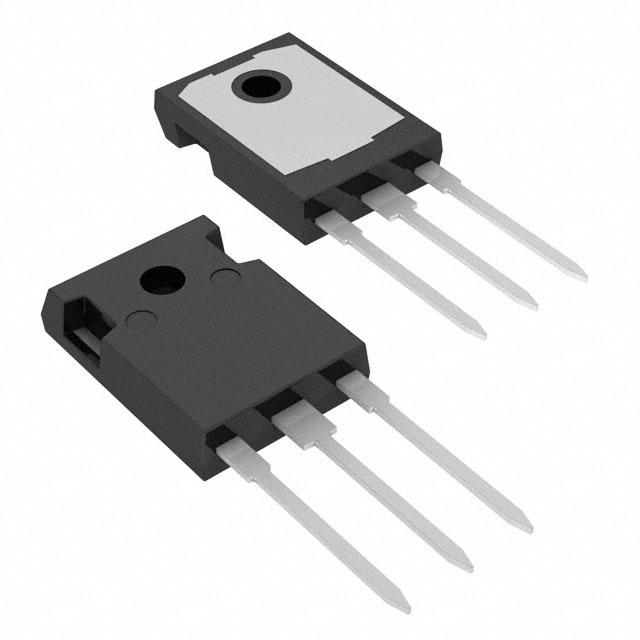

TN3050H-12WY
