Download Datasheet

TN4050HP-12WY

STMicroelectronics OEM P/N：TN4050HP-12WY
rohs compliant 1200 V, 40 A AUTOMOTIVE GRADE AE

9,350 pcs

N/A

TO-247-3

$4.7855 (For reference only.)
QUICK RFQ

Specifications

Series - Voltage - Off State 1.2 kV
Voltage - Gate Trigger (Vgt) (Max) 1.3 V Current - Gate Trigger (Igt) (Max) 50 mA
Voltage - On State (Vtm) (Max) 1.55 V Current - On State (It (AV)) (Max) 25 A
Current - On State (It (RMS)) (Max) 40 A Current - Hold (Ih) (Max) 100 mA
Current - Off State (Max) 5 µA Current - Non Rep. Surge 50, 60Hz (Itsm) 400A, 440A
SCR Type Standard Recovery Operating Temperature -40°C ~ 150°C (TJ)
Grade Automotive Qualification AEC-Q101
Mounting Type Through Hole Package / Case TO-247-3
Supplier Device Package TO-247-3

Related Products

TM8050H-8W
TM8050H-8W

SCR 800V 80A TO247

TO-247-3 View
TN5050H-12WY
TN5050H-12WY

SCR 1.2KV 80A TO247-3

TO-247-3 View
TN6050HP-12WY
TN6050HP-12WY

AVAILABLE IN TO-247 HIGH POWER P

TO-247-3 View

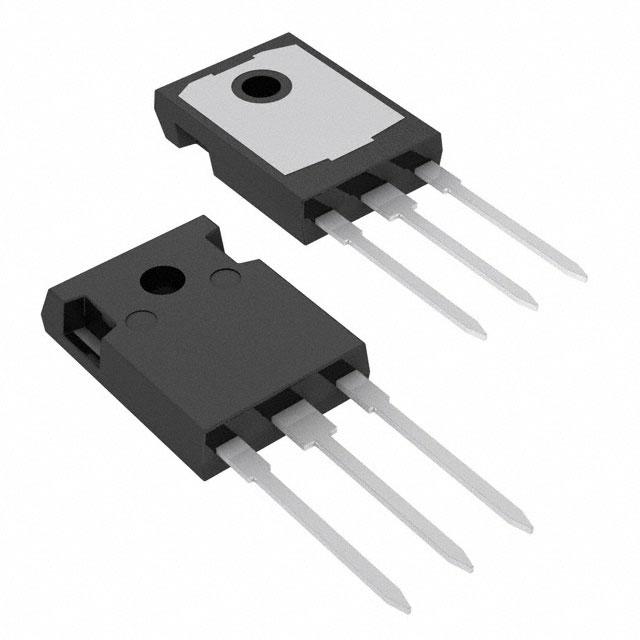

TN3050H-12WY
