Download Datasheet

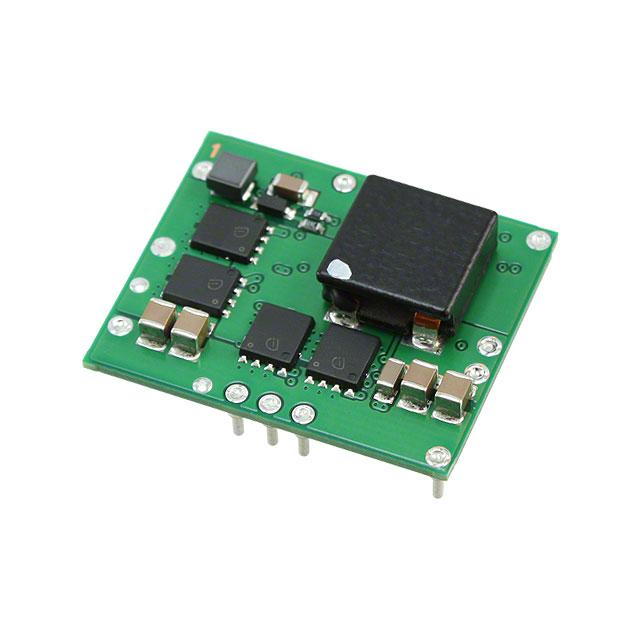

PTH12030WAD

Texas Instruments OEM P/N：PTH12030WAD
rohs compliant DC DC CONVERTER 1.2-5.5V 26A

27,620 pcs

N/A

13-DIP Module

$35.9125 (For reference only.)
QUICK RFQ

Specifications

Series PTH12030 Type Non-Isolated PoL Module
Number of Outputs 1 Voltage - Input (Min) 10.2V
Voltage - Input (Max) 13.8V Voltage - Output 1 1.2 ~ 5.5V
Voltage - Output 2 - Voltage - Output 3 -
Voltage - Output 4 - Current - Output (Max) 26A
Power (Watts) - Voltage - Isolation -
Applications ITE (Commercial) Features -
Operating Temperature -40°C ~ 85°C Efficiency 94.5%
Mounting Type Through Hole Package / Case 13-DIP Module
Size / Dimension 1.37" L x 1.12" W x 0.35" H (34.8mm x 28.4mm x 8.9mm) Supplier Device Package -
Control Features - Approval Agency -
Standard Number -
