Download Datasheet

PTH03030WAH

Texas Instruments OEM P/N：PTH03030WAH
rohs compliant DC DC CONVERTER 0.8-2.5V 30A

14,830 pcs

N/A

13-DIP Module

$24.5565 (For reference only.)
QUICK RFQ

Specifications

Series PTH03030W Type Non-Isolated PoL Module
Number of Outputs 1 Voltage - Input (Min) 2.95V
Voltage - Input (Max) 3.65V Voltage - Output 1 0.8 ~ 2.5V
Voltage - Output 2 - Voltage - Output 3 -
Voltage - Output 4 - Current - Output (Max) 30A
Power (Watts) - Voltage - Isolation -
Applications ITE (Commercial) Features -
Operating Temperature -40°C ~ 85°C Efficiency 93%
Mounting Type Through Hole Package / Case 13-DIP Module
Size / Dimension 1.37" L x 1.12" W x 0.35" H (34.8mm x 28.4mm x 8.9mm) Supplier Device Package -
Control Features - Approval Agency -
Standard Number -

Related Products

PTH12030WAH
PTH12030WAH

DC DC CONVERTER 1.2-5.5V 26A

13-DIP Module View
PTH12030WAD
PTH12030WAD

DC DC CONVERTER 1.2-5.5V 26A

13-DIP Module View
PTB48540CAH
PTB48540CAH

DC DC CONVERTER 12V 10W

13-DIP Module View

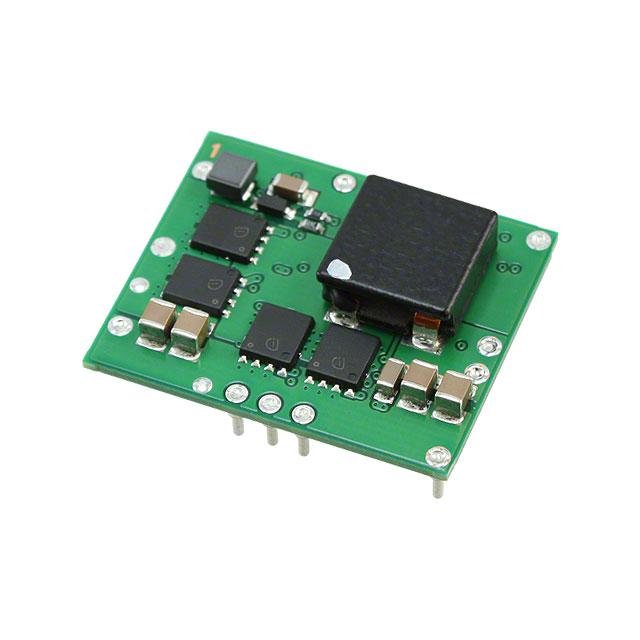

PTH05030WAH
