Download Datasheet

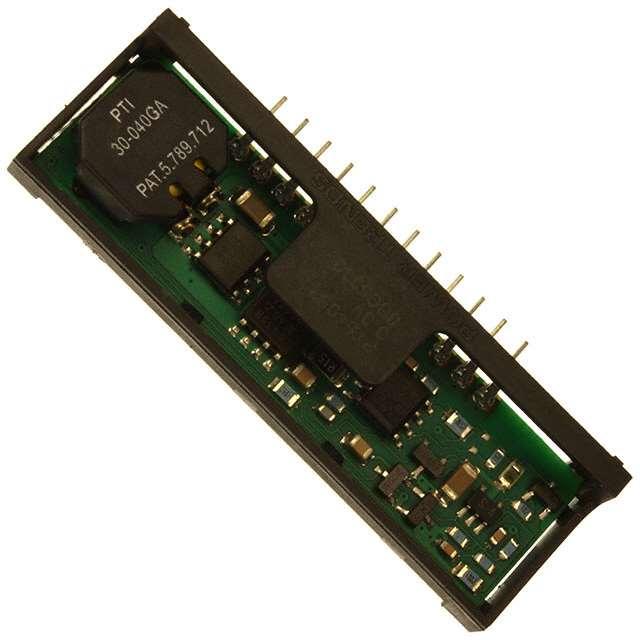

PT4523N

Texas Instruments OEM P/N：PT4523N
rohs compliant DC DC CONVERTER 12V 20W

28,160 pcs

N/A

12-SIP Module

$32.1045 (For reference only.)
QUICK RFQ

Specifications

Series Excalibur™ PT4520 (20W) Type Isolated Module
Number of Outputs 1 Voltage - Input (Min) 36V
Voltage - Input (Max) 75V Voltage - Output 1 12V
Voltage - Output 2 - Voltage - Output 3 -
Voltage - Output 4 - Current - Output (Max) 1.6A
Power (Watts) 20 W Voltage - Isolation 1.5 kV
Applications ITE (Commercial) Features -
Operating Temperature -40°C ~ 85°C Efficiency 83%
Mounting Type Through Hole Package / Case 12-SIP Module
Size / Dimension 2.58" L x 0.50" W x 1.02" H (65.5mm x 12.7mm x 25.9mm) Supplier Device Package -
Control Features - Approval Agency -
Standard Number -
