PTV05020WAH

Texas Instruments OEM P/N：PTV05020WAH
rohs compliant DC DC CONVERTER 0.8-3.6V

17,620 pcs

N/A

12-SIP Module

$18.3441 (For reference only.)
QUICK RFQ

Specifications

Series PTV05020W Type Non-Isolated PoL Module
Number of Outputs 1 Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V Voltage - Output 1 0.8 ~ 3.6V
Voltage - Output 2 - Voltage - Output 3 -
Voltage - Output 4 - Current - Output (Max) 18A
Power (Watts) - Voltage - Isolation -
Applications ITE (Commercial) Features UVLO
Operating Temperature -40°C ~ 85°C Efficiency 94%
Mounting Type Through Hole Package / Case 12-SIP Module
Size / Dimension 1.75" L x 0.37" W x 0.50" H (44.5mm x 9.4mm x 12.7mm) Supplier Device Package -
Control Features - Approval Agency -
Standard Number -

Related Products

PT6409E
PT6409E

REG 2.5V 3A ADJ HRZ SMT 12SIP

12-SIP Module View
PTV12020WAH
PTV12020WAH

DC DC CONVERTER 1.2-5.5V

12-SIP Module View
PTV12020LAH
PTV12020LAH

DC DC CONVERTER 0.8-1.8V

12-SIP Module View

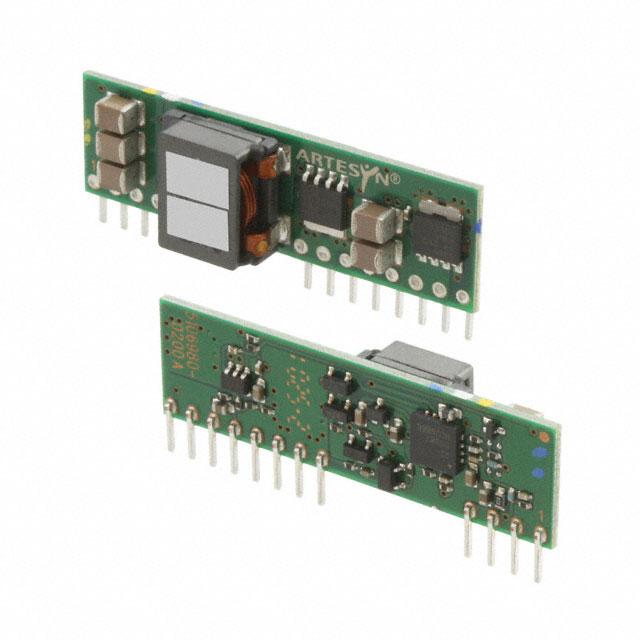

PTV03020WAH
