Download Datasheet

GAN041-650WSBQ

NEXPERIA OEM P/N：GAN041-650WSBQ
rohs compliant GAN041-650WSB/SOT429/TO-247

19,210 pcs

N/A

TO-247-3

$15.3255 (For reference only.)
QUICK RFQ

Specifications

Series - FET Type N-Channel
Technology GaNFET (Cascode Gallium Nitride FET) Drain to Source Voltage (Vdss) 650 V
Current - Continuous Drain (Id) @ 25°C 47.2A Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 41mOhm @ 32A, 10V Vgs(th) (Max) @ Id 4.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 22 nC @ 10 V Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 1500 pF @ 400 V FET Feature -
Power Dissipation (Max) 187W Operating Temperature -55°C ~ 175°C (TJ)
Grade - Qualification -
Mounting Type Through Hole Supplier Device Package TO-247-3
Package / Case TO-247-3

Related Products

NGW30T60M3DFQ
NGW30T60M3DFQ

600V IGBT DISCRETE

TO-247-3 View

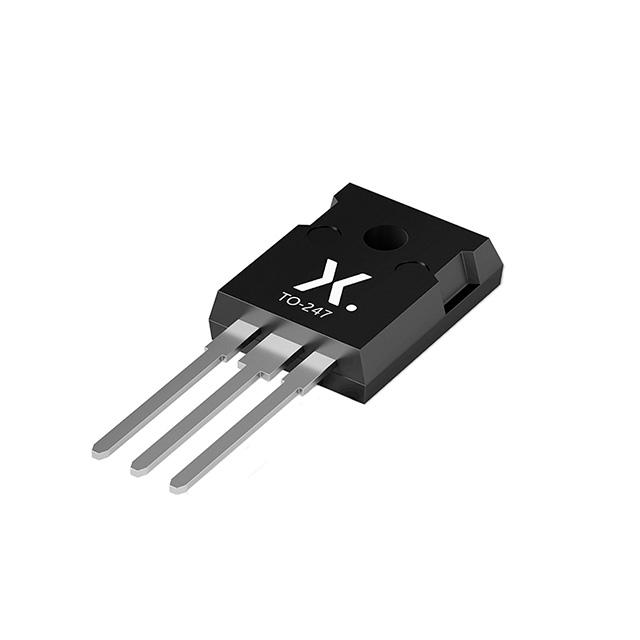

GAN063-650WSAQ
