XP2530AGY

YAGEO OEM P/N：XP2530AGY
rohs compliant MOSFET N AND P-CH 30V 3.3A 2.3A

6,440 pcs

N/A

SOT-23-6

$0.4419 (For reference only.)
QUICK RFQ

Specifications

Series - Technology MOSFET (Metal Oxide)
Configuration N and P-Channel FET Feature Standard
Drain to Source Voltage (Vdss) 30V Current - Continuous Drain (Id) @ 25°C 3.3A (Ta), 2.3A (Ta)
Rds On (Max) @ Id, Vgs 72mOhm @ 3A, 10V, 150mOhm @ 2A, 10V Vgs(th) (Max) @ Id 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 4.5nC @ 4.5V Input Capacitance (Ciss) (Max) @ Vds 320pF @ 15V, 260pF @ 15V
Power - Max 1.136W (Ta) Operating Temperature -55°C ~ 150°C (TJ)
Grade - Qualification -
Mounting Type Surface Mount Package / Case SOT-23-6
Supplier Device Package SOT-26

Related Products

UDT26A05L05-LC1
UDT26A05L05-LC1

TVS DIODE 5VWM 16VC SOT23-6L

SOT-23-6 View

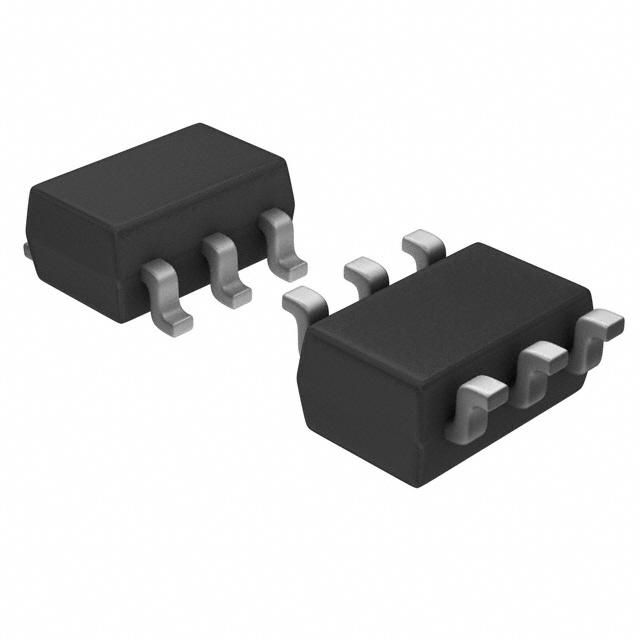

UAT26A03L05
