Download Datasheet

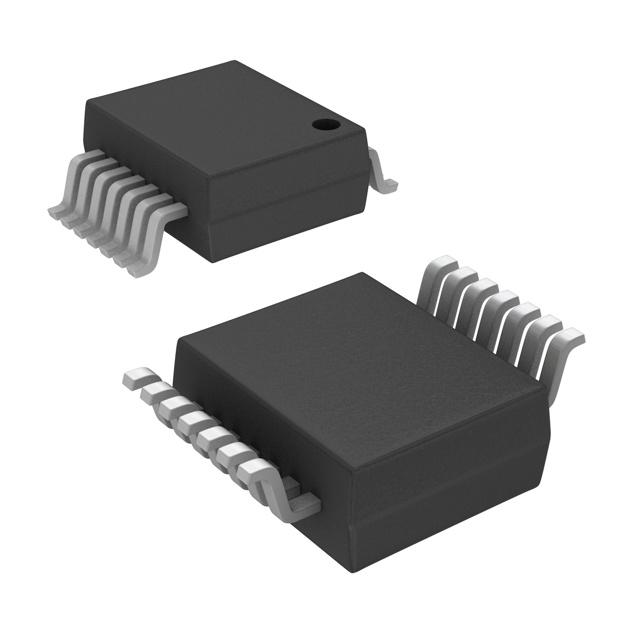

TS3A5017DGVR

Texas Instruments OEM P/N：TS3A5017DGVR
rohs compliant IC SWITCH SP4T X 2 12OHM 16TVSOP

16,930 pcs

N/A

16-TFSOP (0.173", 4.40mm Width)

$0.2805 (For reference only.)
QUICK RFQ

Specifications

Series - Switch Circuit SP4T
Multiplexer/Demultiplexer Circuit 4:1 Number of Circuits 2
On-State Resistance (Max) 12Ohm Channel-to-Channel Matching (ΔRon) 1Ohm
Voltage - Supply, Single (V+) 2.3V ~ 3.6V Voltage - Supply, Dual (V±) -
Switch Time (Ton, Toff) (Max) 9.5ns, 3.5ns -3db Bandwidth 165MHz
Charge Injection 5pC Channel Capacitance (CS(off), CD(off)) 4.5pF, 19pF
Current - Leakage (IS(off)) (Max) 100nA Crosstalk -49dB @ 1MHz
Operating Temperature -40°C ~ 85°C (TA) Mounting Type Surface Mount
Package / Case 16-TFSOP (0.173", 4.40mm Width) Supplier Device Package 16-TVSOP

Related Products

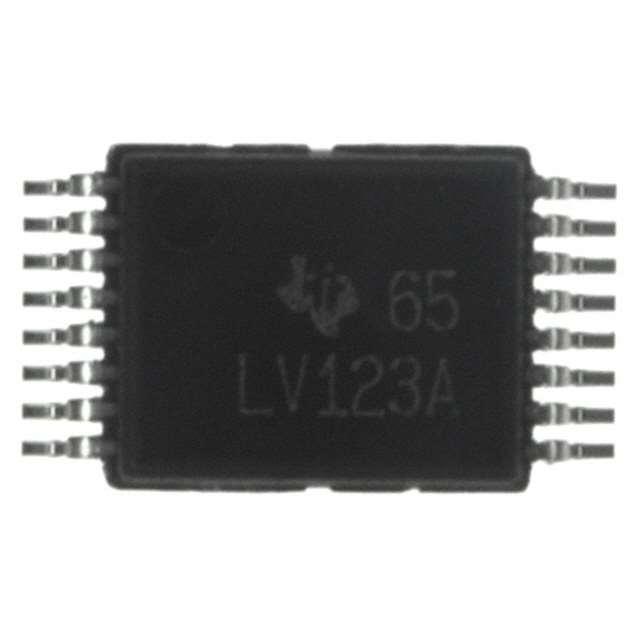

SN74AHCT123ADGVR
