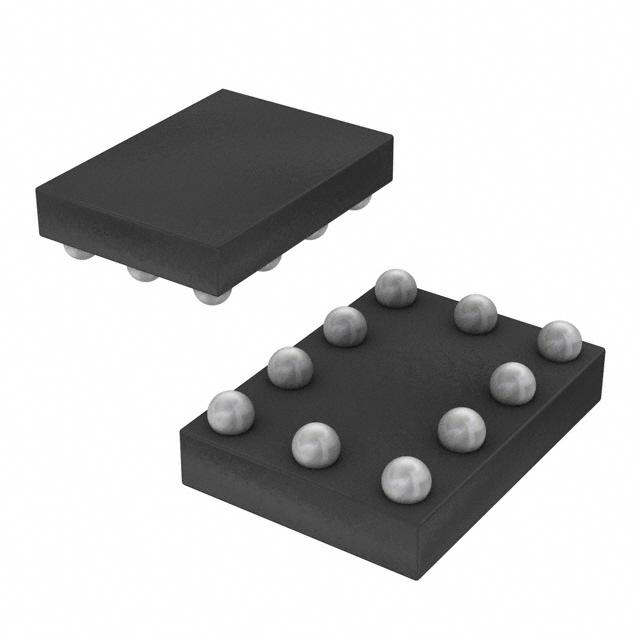

TS3A24159YZPR

OEM P/N：TS3A24159YZPR

IC SWITCH SPDTX2 300MOHM 10DSBGA

In Stock Quantity

Lot code

Package

$0.476 (For reference only.)

QUICK RFQ

* Company

* Full Name

* Your Email

* Contact Number

Message

Series	-	Switch Circuit	SPDT
Multiplexer/Demultiplexer Circuit	2:1	Number of Circuits	2
On-State Resistance (Max)	300mOhm	Channel-to-Channel Matching (ΔRon)	10mOhm
Voltage - Supply, Single (V+)	1.65V ~ 3.6V	Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	35ns, 25ns	-3db Bandwidth	23MHz
Charge Injection	9pC	Channel Capacitance (CS(off), CD(off))	90pF
Current - Leakage (IS(off)) (Max)	10nA	Crosstalk	-96dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)	Mounting Type	Surface Mount
Package / Case	10-XFBGA, DSBGA	Supplier Device Package	10-DSBGA
