Download Datasheet

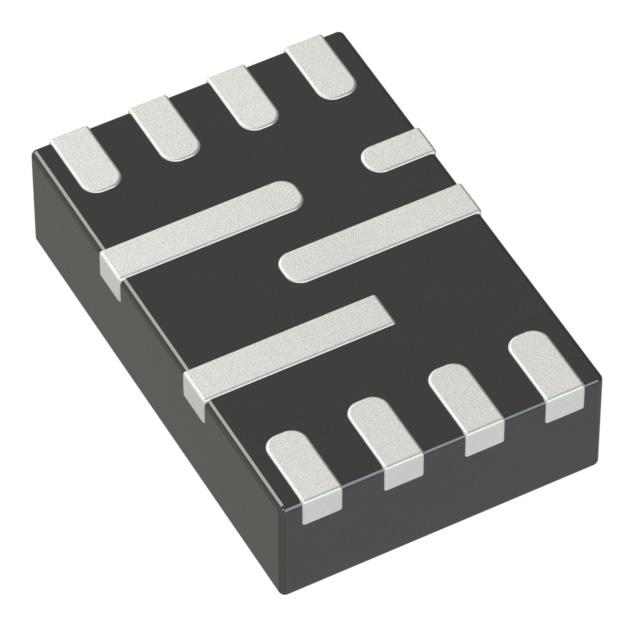

TPS566235RJNT

Texas Instruments OEM P/N：TPS566235RJNT
rohs compliant IC REG BUCK ADJ 6A 13VQFN

23,260 pcs

N/A

13-VFQFN

$2.1028 (For reference only.)
QUICK RFQ

Specifications

Series Eco-Mode™ Function Step-Down
Output Configuration Positive Topology Buck
Output Type Adjustable Number of Outputs 1
Voltage - Input (Min) 4.5V Voltage - Input (Max) 18V
Voltage - Output (Min/Fixed) 0.6V Voltage - Output (Max) 7V
Current - Output 6A Frequency - Switching 600kHz
Synchronous Rectifier Yes Operating Temperature -40°C ~ 125°C (TJ)
Mounting Type Surface Mount Package / Case 13-VFQFN
Supplier Device Package 13-VQFN-HR (3x2)
