Download Datasheet

TPS54561DPRR

Texas Instruments OEM P/N：TPS54561DPRR
rohs compliant IC REG BUCK ADJ 5A 10WSON

21,250 pcs

N/A

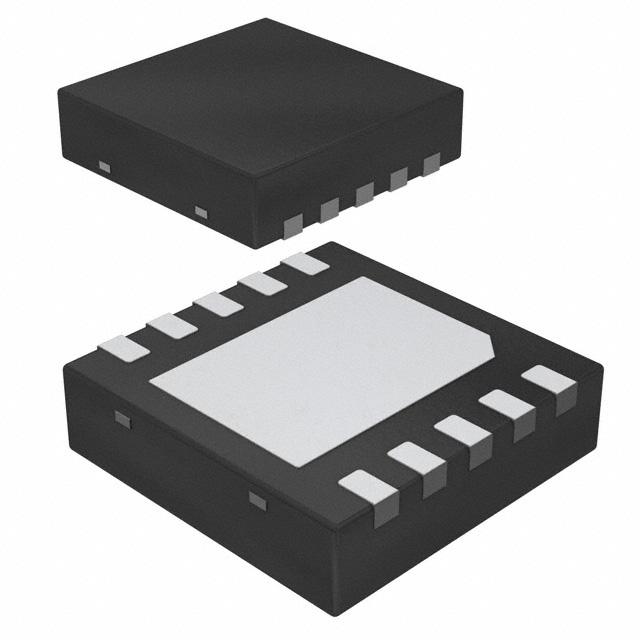

10-WDFN Exposed Pad

$2.5417 (For reference only.)
QUICK RFQ

Specifications

Series Eco-Mode™ Function Step-Down
Output Configuration Positive Topology Buck
Output Type Adjustable Number of Outputs 1
Voltage - Input (Min) 4.5V Voltage - Input (Max) 60V
Voltage - Output (Min/Fixed) 0.8V Voltage - Output (Max) 59V
Current - Output 5A Frequency - Switching 100kHz ~ 2.5MHz
Synchronous Rectifier No Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Surface Mount Package / Case 10-WDFN Exposed Pad
Supplier Device Package 10-WSON (4x4)
