TPD2E009DBZR

Texas Instruments OEM P/N：TPD2E009DBZR
rohs compliant TVS DIODE 5.5VWM 8VC SOT23-3

6,500 pcs

N/A

TO-236-3, SC-59, SOT-23-3

$0.1674 (For reference only.)
QUICK RFQ

Specifications

Series - Type Zener
Unidirectional Channels 2 Bidirectional Channels -
Voltage - Reverse Standoff (Typ) 5.5V (Max) Voltage - Breakdown (Min) 7V
Voltage - Clamping (Max) @ Ipp 8V Current - Peak Pulse (10/1000µs) 1A (8/20µs)
Power - Peak Pulse 45W Power Line Protection Yes
Applications Ethernet, HDMI Capacitance @ Frequency -
Operating Temperature -40°C ~ 85°C (TA) Grade -
Qualification - Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3 Supplier Device Package SOT-23-3

Related Products

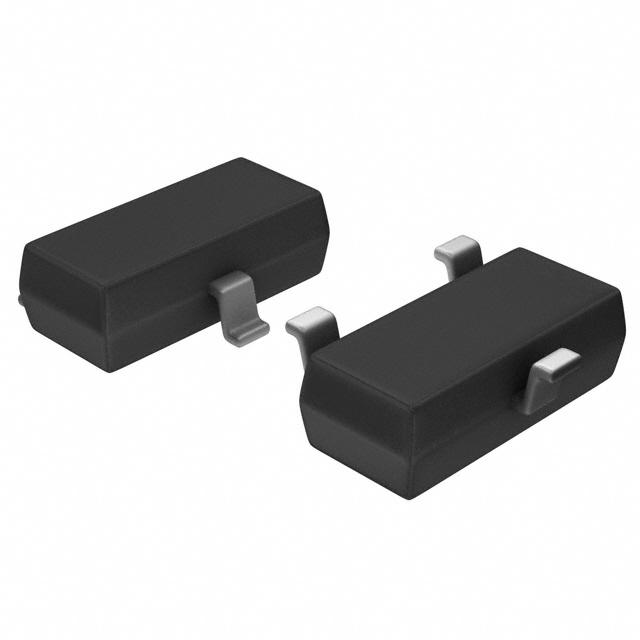

ESD2CAN24DBZRQ1
