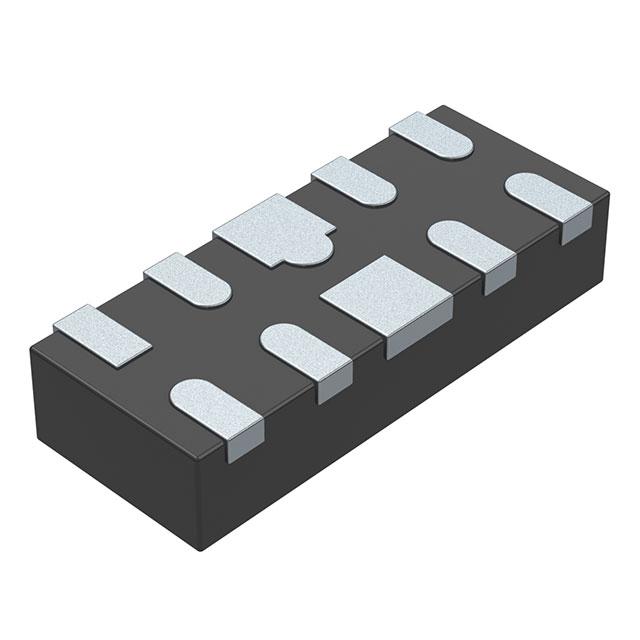

TMUX1104DQAR

Texas Instruments OEM P/N：TMUX1104DQAR
rohs compliant IC SWITCH SP4T X 1 4OHM 10USON

2,730 pcs

N/A

10-UFDFN

$1.1989 (For reference only.)
QUICK RFQ

Specifications

Series - Switch Circuit SP4T
Multiplexer/Demultiplexer Circuit 4:1 Number of Circuits 1
On-State Resistance (Max) 4Ohm Channel-to-Channel Matching (ΔRon) 130mOhm
Voltage - Supply, Single (V+) 1.08V ~ 5.5V Voltage - Supply, Dual (V±) -
Switch Time (Ton, Toff) (Max) 12ns, 5ns (Typ) -3db Bandwidth 155MHz
Charge Injection 1.5pC Channel Capacitance (CS(off), CD(off)) 6pF, 28pF
Current - Leakage (IS(off)) (Max) 80pA Crosstalk -45dB @ 10MHz
Operating Temperature -40°C ~ 125°C (TA) Mounting Type Surface Mount
Package / Case 10-UFDFN Supplier Device Package 10-USON (2.5x1)
