Download Datasheet

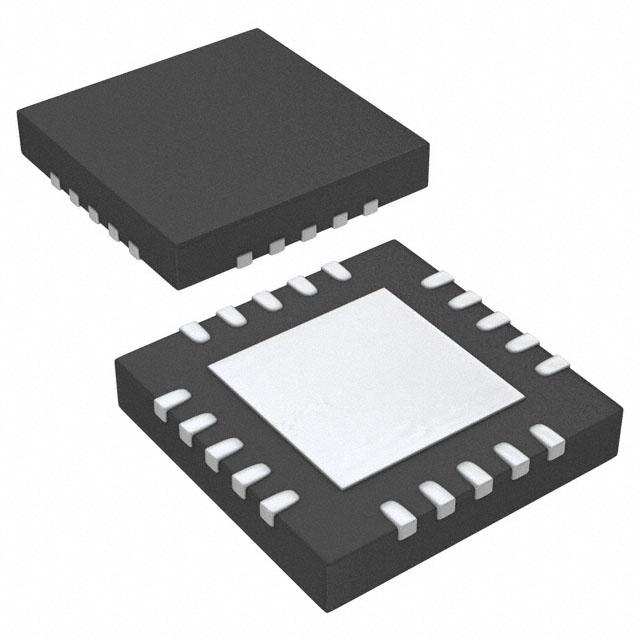

SN75LVCP601RTJR

Texas Instruments OEM P/N：SN75LVCP601RTJR
rohs compliant IC REDRIVER SATA 2CH 6GBPS 20QFN

3,240 pcs

N/A

20-WFQFN Exposed Pad

$1.256 (For reference only.)
QUICK RFQ

Specifications

Series - Type Buffer, ReDriver
Applications SATA Input CML
Output VML Data Rate (Max) 6Gbps
Number of Channels 2 Delay Time 323ps
Signal Conditioning Input Equalization, Output De-Emphasis Capacitance - Input -
Voltage - Supply 3V ~ 3.6V Current - Supply 65mA
Operating Temperature 0°C ~ 85°C Mounting Type Surface Mount
Package / Case 20-WFQFN Exposed Pad Supplier Device Package 20-QFN (4x4)
