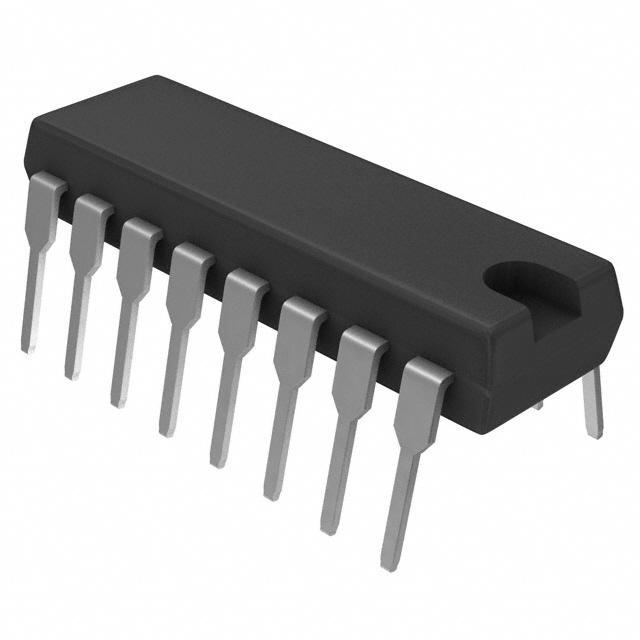

SN74LV4052AN

Texas Instruments OEM P/N：SN74LV4052AN
rohs compliant IC SWITCH SP4T X 2 75OHM 16DIP

24,210 pcs

N/A

16-DIP (0.300", 7.62mm)

$0.6375 (For reference only.)
QUICK RFQ

Specifications

Series - Switch Circuit SP4T
Multiplexer/Demultiplexer Circuit 4:1 Number of Circuits 2
On-State Resistance (Max) 75Ohm Channel-to-Channel Matching (ΔRon) 700mOhm
Voltage - Supply, Single (V+) 2V ~ 5.5V Voltage - Supply, Dual (V±) -
Switch Time (Ton, Toff) (Max) 14ns, 14ns -3db Bandwidth 50MHz
Charge Injection - Channel Capacitance (CS(off), CD(off)) 0.5pF, 13.1pF
Current - Leakage (IS(off)) (Max) 100nA Crosstalk -45dB @ 1MHz
Operating Temperature -40°C ~ 85°C (TA) Mounting Type Through Hole
Package / Case 16-DIP (0.300", 7.62mm) Supplier Device Package 16-PDIP
