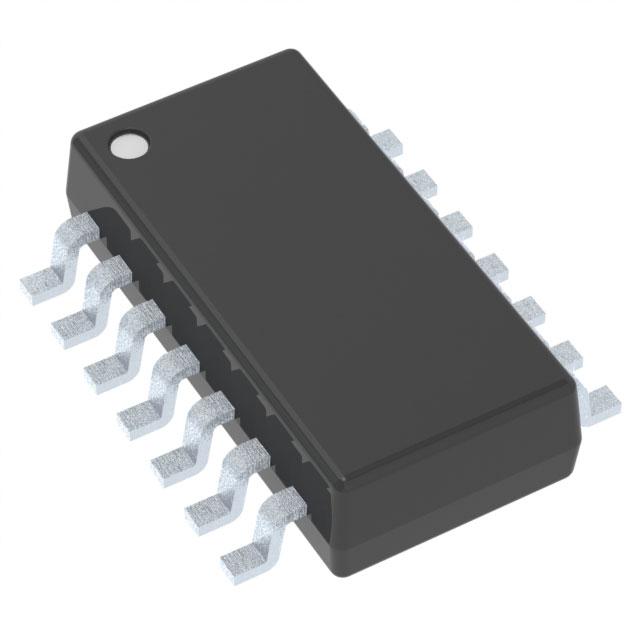

SN74HCS32QDYYRQ1

Texas Instruments OEM P/N：SN74HCS32QDYYRQ1
IC GATE OR 4CH 2-INP 14SOT23

14,140 pcs

N/A

SOT-23-14 Thin, SOT-23 Variant

$0.0992 (For reference only.)
QUICK RFQ

Specifications

Series Automotive, AEC-Q100, 74HCS Logic Type OR Gate
Number of Circuits 4 Number of Inputs 2
Features Schmitt Trigger Input Voltage - Supply 2V ~ 6V
Current - Quiescent (Max) 2 µA Current - Output High, Low 7.8mA, 7.8mA
Input Logic Level - Low 1V ~ 3V Input Logic Level - High 1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL 12ns @ 6V, 50pF Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount Supplier Device Package 14-SOT-23-THIN
Package / Case SOT-23-14 Thin, SOT-23 Variant
