Download Datasheet

PTN78020WAST

Texas Instruments OEM P/N：PTN78020WAST
rohs compliant DC DC CONVERTER 2.5-12.6V

2,040 pcs

N/A

7-SMD Module

Price: N/A
QUICK RFQ

Specifications

Series PTN78020W Type Non-Isolated PoL Module
Number of Outputs 1 Voltage - Input (Min) 7V
Voltage - Input (Max) 36V Voltage - Output 1 2.5 ~ 12.6V
Voltage - Output 2 - Voltage - Output 3 -
Voltage - Output 4 - Current - Output (Max) 6A
Power (Watts) - Voltage - Isolation -
Applications ITE (Commercial) Features Remote On/Off, OCP, OTP, UVLO
Operating Temperature -40°C ~ 85°C Efficiency 94%
Mounting Type Surface Mount Package / Case 7-SMD Module
Size / Dimension 1.50" L x 0.87" W x 0.38" H (38.1mm x 22.1mm x 9.7mm) Supplier Device Package -
Control Features - Approval Agency -
Standard Number -

Related Products

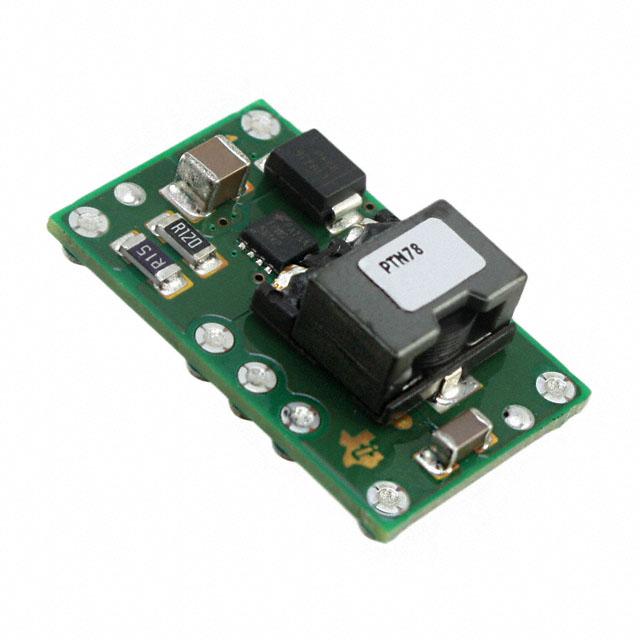

PTN78060WAS
PTN78060WAS

DC DC CONVERTER 2.5-12.6V

7-SMD Module View
PTN78020WAZ
PTN78020WAZ

DC DC CONVERTER 2.5-12.6V

7-SMD Module View

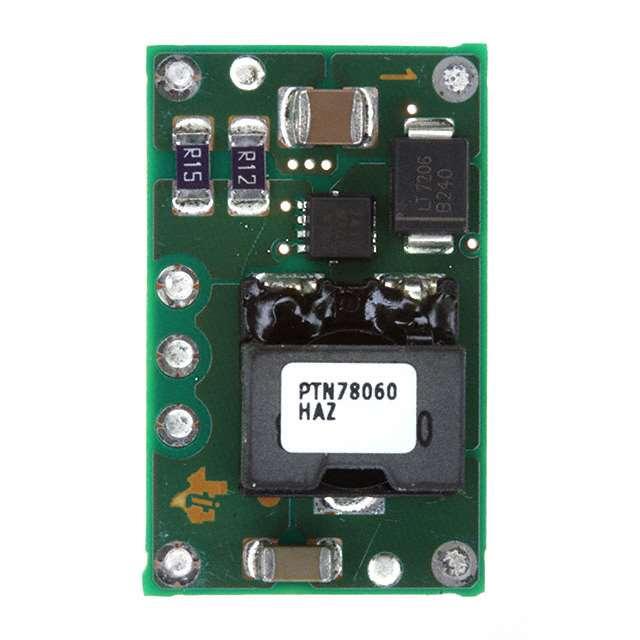

PTN78060HAZ
