Download Datasheet

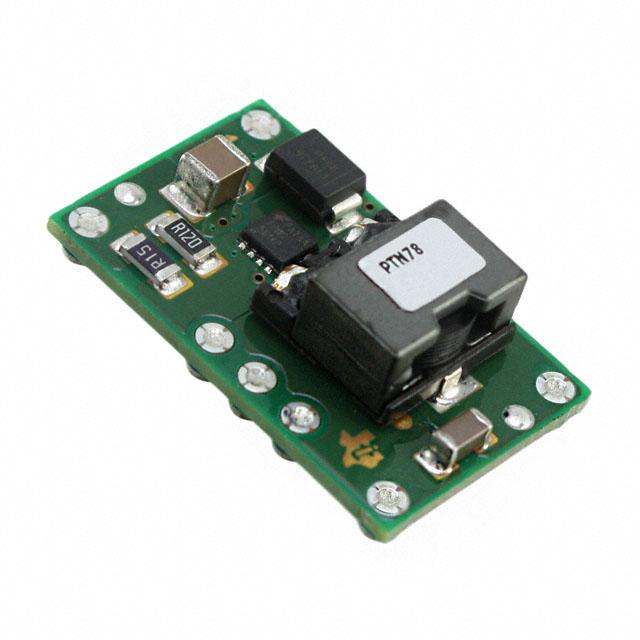

PTN78020HAZT

Texas Instruments OEM P/N：PTN78020HAZT
rohs compliant DC DC CONVERTER 11.85-22V

10,800 pcs

N/A

7-SMD Module

Price: N/A
QUICK RFQ

Specifications

Series PTN78020H Type Non-Isolated PoL Module
Number of Outputs 1 Voltage - Input (Min) 15V
Voltage - Input (Max) 36V Voltage - Output 1 11.85 ~ 22V
Voltage - Output 2 - Voltage - Output 3 -
Voltage - Output 4 - Current - Output (Max) 6A
Power (Watts) - Voltage - Isolation -
Applications ITE (Commercial) Features Remote On/Off, OCP, OTP, UVLO
Operating Temperature -40°C ~ 85°C Efficiency 96%
Mounting Type Surface Mount Package / Case 7-SMD Module
Size / Dimension 1.50" L x 0.87" W x 0.38" H (38.1mm x 22.1mm x 9.7mm) Supplier Device Package -
Control Features - Approval Agency -
Standard Number -
