Download Datasheet

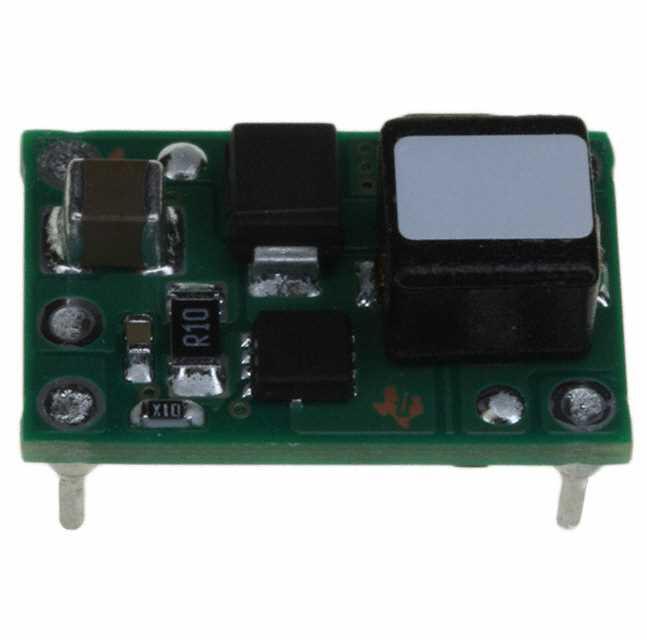

PTN78000AAH

Texas Instruments OEM P/N：PTN78000AAH
rohs compliant DC DC CONVERTER -15 TO -3V

6,800 pcs

N/A

5-DIP Module

$11.1377 (For reference only.)
QUICK RFQ

Specifications

Series PTN78000A Type Non-Isolated PoL Module
Number of Outputs 1 Voltage - Input (Min) 7V
Voltage - Input (Max) 28.7V Voltage - Output 1 -15 ~ -3V
Voltage - Output 2 - Voltage - Output 3 -
Voltage - Output 4 - Current - Output (Max) 1.5A
Power (Watts) - Voltage - Isolation -
Applications ITE (Commercial) Features -
Operating Temperature -40°C ~ 85°C Efficiency 84%
Mounting Type Through Hole Package / Case 5-DIP Module
Size / Dimension 0.75" L x 0.50" W x 0.34" H (19.1mm x 12.7mm x 8.6mm) Supplier Device Package -
Control Features - Approval Agency -
Standard Number -
