Download Datasheet

PTH12030WAST

Texas Instruments OEM P/N：PTH12030WAST
DC DC CONVERTER 1.2-5.5V 26A

10,230 pcs

N/A

13-SMD Module

$24.939 (For reference only.)
QUICK RFQ

Specifications

Series PTH12030 Type Non-Isolated PoL Module
Number of Outputs 1 Voltage - Input (Min) 10.2V
Voltage - Input (Max) 13.8V Voltage - Output 1 1.2 ~ 5.5V
Voltage - Output 2 - Voltage - Output 3 -
Voltage - Output 4 - Current - Output (Max) 26A
Power (Watts) - Voltage - Isolation -
Applications ITE (Commercial) Features Remote On/Off, OCP, OTP, UVLO
Operating Temperature -40°C ~ 85°C Efficiency 94.5%
Mounting Type Surface Mount Package / Case 13-SMD Module
Size / Dimension 1.37" L x 1.12" W x 0.38" H (34.8mm x 28.4mm x 9.7mm) Supplier Device Package -
Control Features - Approval Agency -
Standard Number -

Related Products

PTH12030WAS
PTH12030WAS

DC DC CONVERTER 1.2-5.5V 143W

13-SMD Module View
PTH03030WAZ
PTH03030WAZ

DC DC CONVERTER 0.8-2.5V 75W

13-SMD Module View
PTH12030WAZ
PTH12030WAZ

DC DC CONVERTER 1.2-5.5V 143W

13-SMD Module View

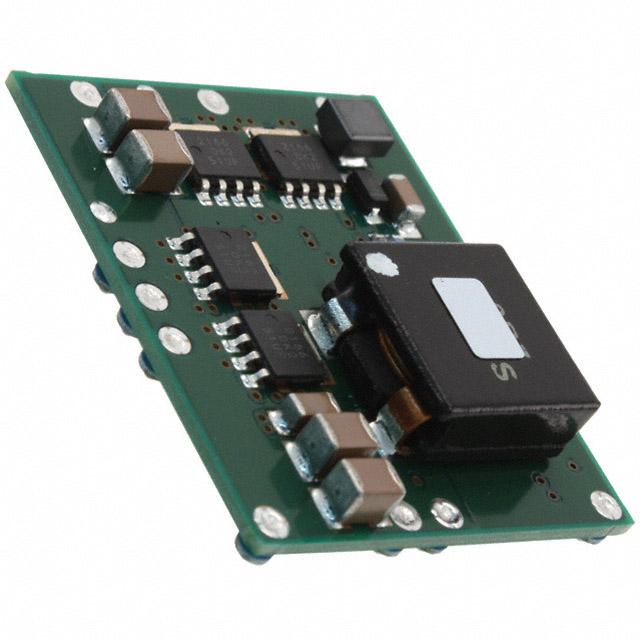

PTH05030WAS
