Download Datasheet

PTH08T260WAZ

Texas Instruments OEM P/N：PTH08T260WAZ
rohs compliant DC DC CONVERTER 0.69-5.5V

13,740 pcs

N/A

10-SMD Module

$9.9025 (For reference only.)
QUICK RFQ

Specifications

Series PTH08T260W Type Non-Isolated PoL Module
Number of Outputs 1 Voltage - Input (Min) 4.5V
Voltage - Input (Max) 14V Voltage - Output 1 0.69 ~ 5.5V
Voltage - Output 2 - Voltage - Output 3 -
Voltage - Output 4 - Current - Output (Max) 3A
Power (Watts) - Voltage - Isolation -
Applications ITE (Commercial) Features Remote On/Off, OCP, OTP, UVLO
Operating Temperature -40°C ~ 85°C Efficiency 95%
Mounting Type Surface Mount Package / Case 10-SMD Module
Size / Dimension 0.75" L x 0.62" W x 0.36" H (19.1mm x 15.7mm x 9.1mm) Supplier Device Package -
Control Features - Approval Agency -
Standard Number -

Related Products

PTH08T230WAZT
PTH08T230WAZT

DC DC CONVERTER 0.69-5.5V

10-SMD Module View
PTH08T230WAS
PTH08T230WAS

DC DC CONVERTER 0.69-5.5V

10-SMD Module View
PTH04T260WAZ
PTH04T260WAZ

DC DC CONVERTER 0.69-3.6V

10-SMD Module View

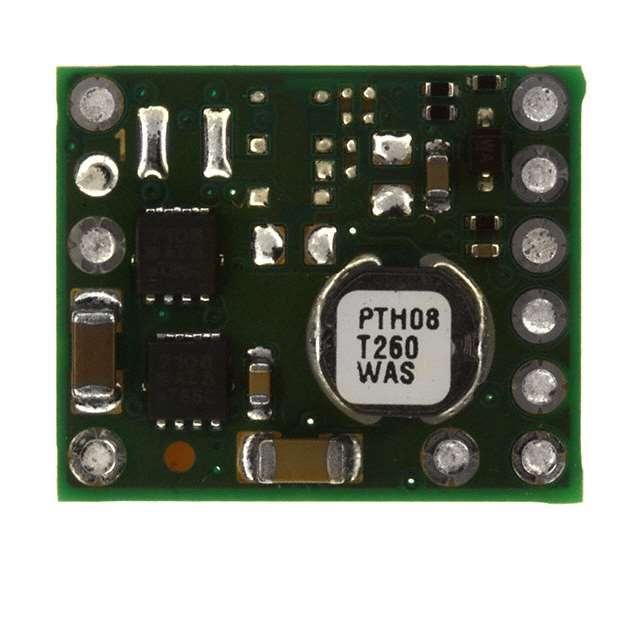

PTH08T260WAS
