Download Datasheet

PTH08T220WAZ

Texas Instruments OEM P/N：PTH08T220WAZ
rohs compliant DC DC CONVERTER 0.69-5.5V

17,360 pcs

N/A

11-SMD Module

$21.624 (For reference only.)
QUICK RFQ

Specifications

Series PTH08T220W Type Non-Isolated PoL Module
Number of Outputs 1 Voltage - Input (Min) 4.5V
Voltage - Input (Max) 14V Voltage - Output 1 0.69 ~ 5.5V
Voltage - Output 2 - Voltage - Output 3 -
Voltage - Output 4 - Current - Output (Max) 16A
Power (Watts) - Voltage - Isolation -
Applications ITE (Commercial) Features Remote On/Off, OCP, OTP, UVLO
Operating Temperature -40°C ~ 85°C Efficiency 95%
Mounting Type Surface Mount Package / Case 11-SMD Module
Size / Dimension 0.87" L x 0.75" W x 0.36" H (22.1mm x 19.1mm x 9.1mm) Supplier Device Package -
Control Features - Approval Agency -
Standard Number -

Related Products

PTH08T240WAZT
PTH08T240WAZT

DC DC CONVERTER 0.69-5.5V

11-SMD Module View
PTH08T240WAS
PTH08T240WAS

DC DC CONVERTER 0.69-5.5V

11-SMD Module View
PTH08T240WAZ
PTH08T240WAZ

DC DC CONVERTER 0.69-5.5V

11-SMD Module View

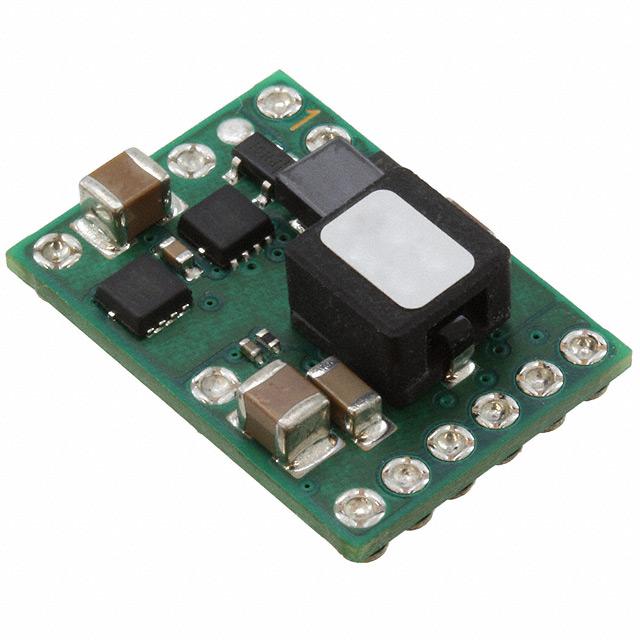

PTH04T241WAST
