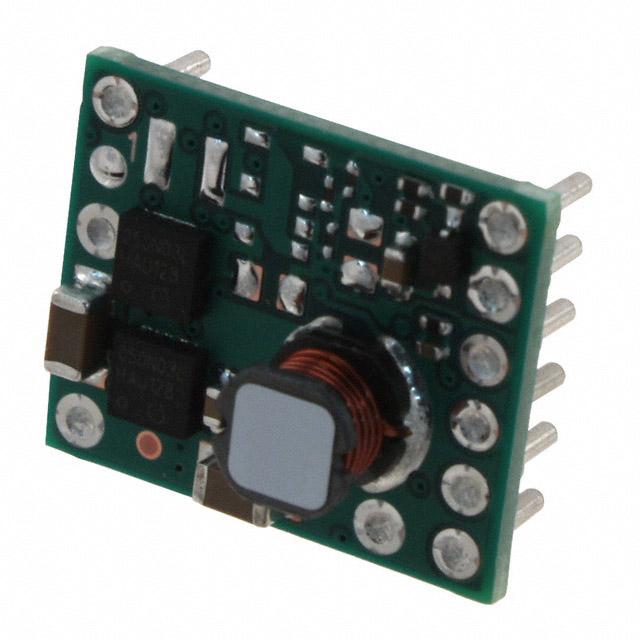

PTH05010YAH

Texas Instruments OEM P/N：PTH05010YAH
rohs compliant DC DC CONVERTER 0.55-1.8V

23,740 pcs

N/A

10-DIP Module

$16.9235 (For reference only.)
QUICK RFQ

Specifications

Series PTH05010Y Type Non-Isolated PoL Module
Number of Outputs 1 Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V Voltage - Output 1 0.55 ~ 1.8V
Voltage - Output 2 - Voltage - Output 3 -
Voltage - Output 4 - Current - Output (Max) 15A
Power (Watts) - Voltage - Isolation -
Applications ITE (Commercial) Features -
Operating Temperature -40°C ~ 85°C Efficiency 88%
Mounting Type Through Hole Package / Case 10-DIP Module
Size / Dimension 1.37" L x 0.62" W x 0.35" H (34.8mm x 15.7mm x 8.9mm) Supplier Device Package -
Control Features - Approval Agency -
Standard Number -

Related Products

PTH08T230WAD
PTH08T230WAD

DC DC CONVERTER 0.69-5.5V

10-DIP Module View

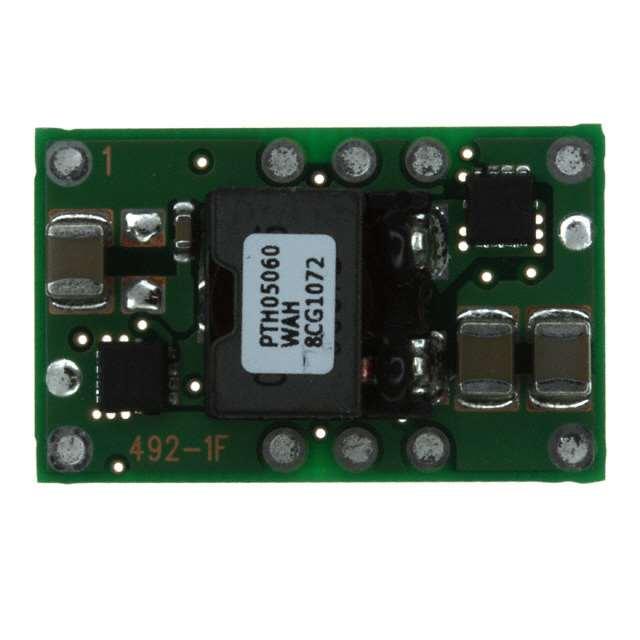

PTH05060WAH
PTH05060WAH

DC DC CONVERTER 0.8-3.6V 10A

10-DIP Module View

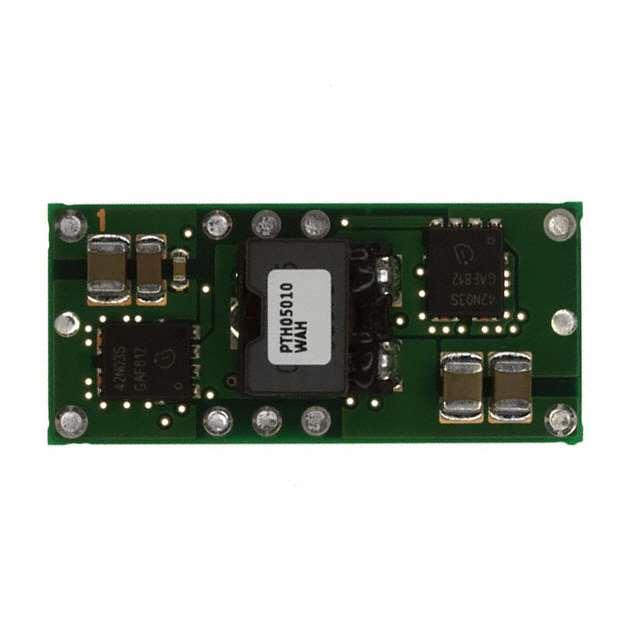

PTH05010WAH
