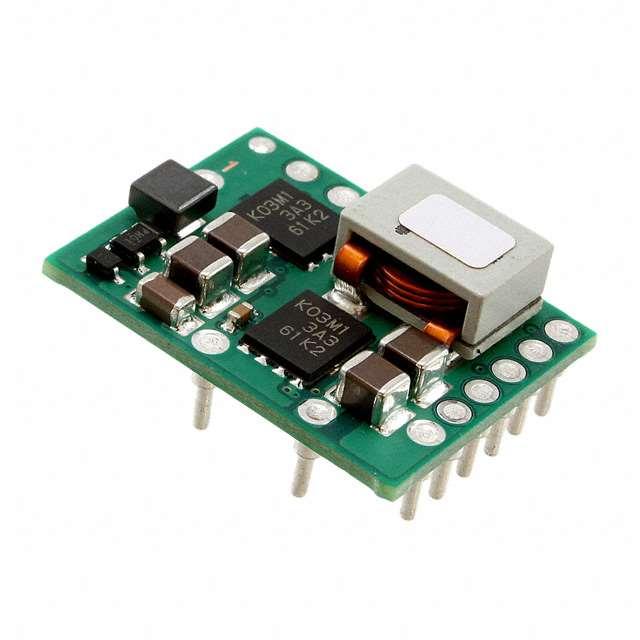

PTH04T221WAD

Texas Instruments OEM P/N：PTH04T221WAD
rohs compliant DC DC CONVERTER 0.69-3.6V

1,270 pcs

N/A

11-DIP Module

$16.29 (For reference only.)
QUICK RFQ

Specifications

Series PTH04T221W Type Non-Isolated PoL Module
Number of Outputs 1 Voltage - Input (Min) 2.2V
Voltage - Input (Max) 5.5V Voltage - Output 1 0.69 ~ 3.6V
Voltage - Output 2 - Voltage - Output 3 -
Voltage - Output 4 - Current - Output (Max) 16A
Power (Watts) - Voltage - Isolation -
Applications ITE (Commercial) Features -
Operating Temperature -40°C ~ 85°C Efficiency 94%
Mounting Type Through Hole Package / Case 11-DIP Module
Size / Dimension 1.00" L x 0.75" W x 0.34" H (25.4mm x 19.1mm x 8.6mm) Supplier Device Package -
Control Features - Approval Agency -
Standard Number -
