Download Datasheet

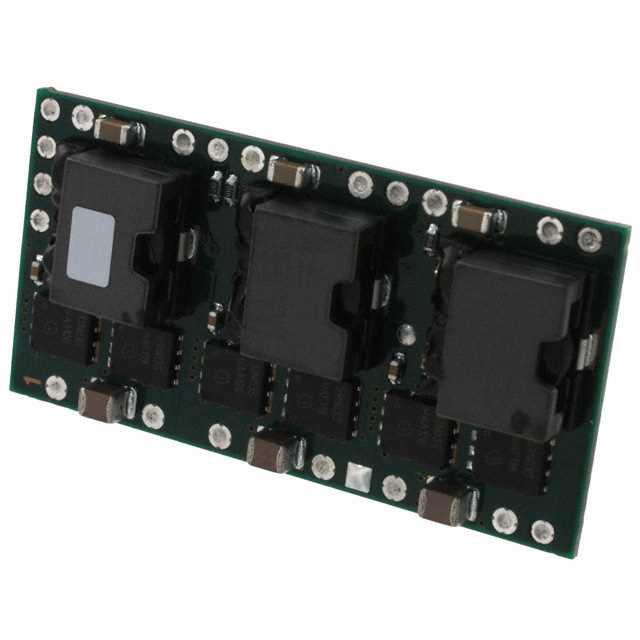

PT4801C

Texas Instruments OEM P/N：PT4801C
rohs compliant DC DC CNVRTR 15V 3.3V 1.5V 25W

25,950 pcs

N/A

20-SMD Module

Price: N/A
QUICK RFQ

Specifications

Series Excalibur™ PT4801 (25W) Type Isolated Module
Number of Outputs 3 Voltage - Input (Min) 36V
Voltage - Input (Max) 75V Voltage - Output 1 15V
Voltage - Output 2 3.3V Voltage - Output 3 1.5V
Voltage - Output 4 - Current - Output (Max) 1.25A, 3A, 2A
Power (Watts) 25 W Voltage - Isolation 1.5 kV
Applications ITE (Commercial) Features Remote On/Off, OCP, OTP, SCP, UVLO
Operating Temperature -40°C ~ 85°C Efficiency 81%
Mounting Type Surface Mount Package / Case 20-SMD Module
Size / Dimension - Supplier Device Package -
Control Features - Approval Agency -
Standard Number -

Related Products

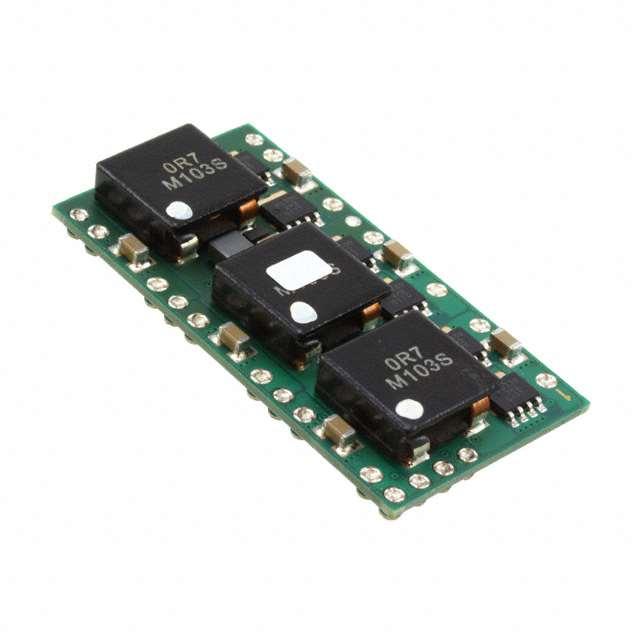

PTH12040WAZ
