Download Datasheet

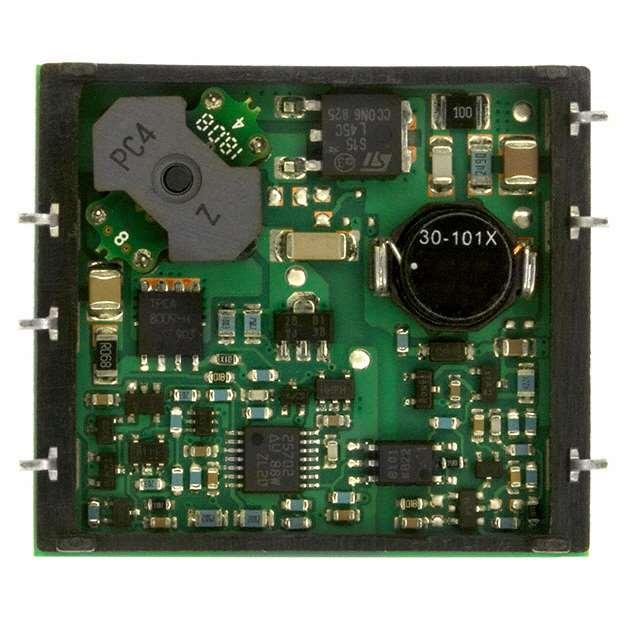

PT4102C

Texas Instruments OEM P/N：PT4102C
rohs compliant DC DC CONVERTER 12V 15W

20,500 pcs

N/A

8-SMD Module, 6 Leads

$50.4475 (For reference only.)
QUICK RFQ

Specifications

Series PT4100 (15W) Type Isolated Module
Number of Outputs 1 Voltage - Input (Min) 36V
Voltage - Input (Max) 75V Voltage - Output 1 12V
Voltage - Output 2 - Voltage - Output 3 -
Voltage - Output 4 - Current - Output (Max) 1.25A
Power (Watts) 15 W Voltage - Isolation 1.5 kV
Applications ITE (Commercial) Features -
Operating Temperature -40°C ~ 85°C Efficiency 81%
Mounting Type Surface Mount Package / Case 8-SMD Module, 6 Leads
Size / Dimension 1.67" L x 1.48" W x 0.33" H (42.4mm x 37.6mm x 8.4mm) Supplier Device Package -
Control Features - Approval Agency -
Standard Number -
