Download Datasheet

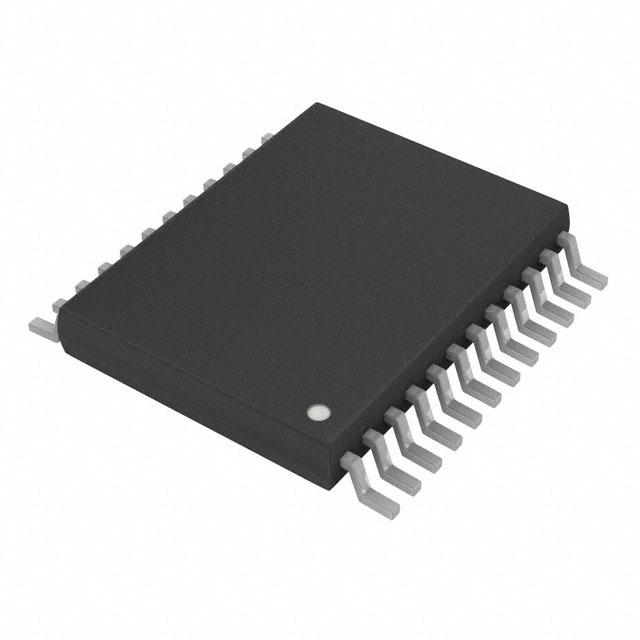

PCA9535DGVR

Texas Instruments OEM P/N：PCA9535DGVR
rohs compliant IC XPND 400KHZ I2C SMBUS 24TVSOP

28,800 pcs

N/A

24-TFSOP (0.173", 4.40mm Width)

$1.0625 (For reference only.)
QUICK RFQ

Specifications

Series - DigiKey Programmable Not Verified
Number of I/O 16 Interface I²C, SMBus
Interrupt Output Yes Features POR
Output Type Push-Pull Current - Output Source/Sink 10mA, 25mA
Clock Frequency 400 kHz Voltage - Supply 2.3V ~ 5.5V
Operating Temperature -40°C ~ 85°C Mounting Type Surface Mount
Package / Case 24-TFSOP (0.173", 4.40mm Width) Supplier Device Package 24-TVSOP
