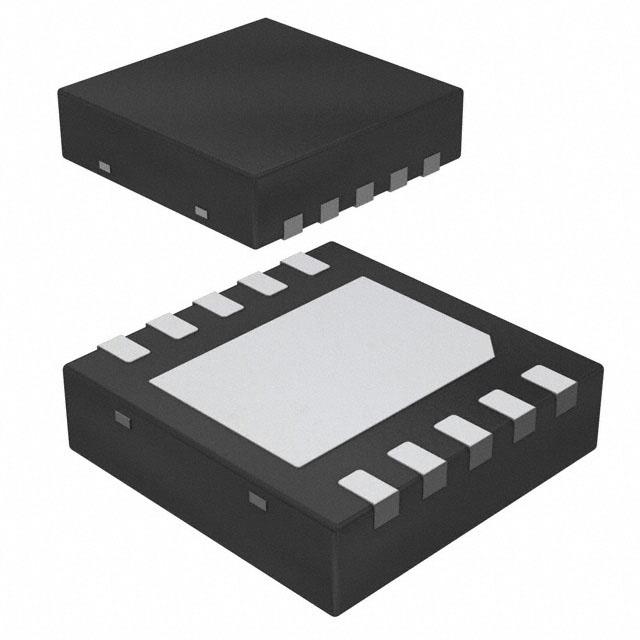

LP3996SDX-3030/NOPB

Texas Instruments OEM P/N：LP3996SDX-3030/NOPB
rohs compliant IC REG LIN 3V 150MA/300MA 10WSON

18,270 pcs

N/A

10-WFDFN Exposed Pad

Price: N/A
QUICK RFQ

Specifications

Series - Output Configuration Positive
Output Type Fixed Number of Regulators 2
Voltage - Input (Max) 6V Voltage - Output (Min/Fixed) 3V
Voltage - Output (Max) - Voltage Dropout (Max) 0.22V @ 150mA, 0.55V @ 150mA
Current - Output 150mA, 300mA Current - Quiescent (Iq) 100 µA
Current - Supply (Max) 170 µA PSRR 58dB ~ 45dB, 70dB ~ 60dB (1kHz ~ 20kHz)
Control Features Enable Protection Features Over Temperature, Short Circuit
Operating Temperature -40°C ~ 85°C Mounting Type Surface Mount
Package / Case 10-WFDFN Exposed Pad Supplier Device Package 10-WSON (3x3)
