Download Datasheet

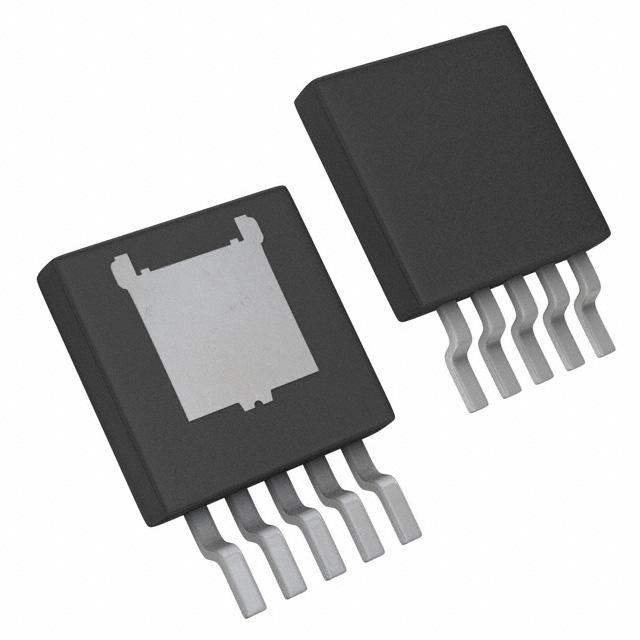

LP38503TJ-ADJ/NOPB

Texas Instruments OEM P/N：LP38503TJ-ADJ/NOPB
rohs compliant IC REG LIN POS ADJ 3A TO263 THIN

9,700 pcs

N/A

TO-263-5 Thin

$0.9959 (For reference only.)
QUICK RFQ

Specifications

Series - Output Configuration Positive
Output Type Adjustable Number of Regulators 1
Voltage - Input (Max) 5.5V Voltage - Output (Min/Fixed) 0.6V
Voltage - Output (Max) 5V Voltage Dropout (Max) 0.67V @ 3A
Current - Output 3A Current - Quiescent (Iq) 15 µA
Current - Supply (Max) 4 mA PSRR 58dB ~ 56dB (120Hz ~ 1kHz)
Control Features - Protection Features Over Current, Over Temperature, Short Circuit
Operating Temperature -40°C ~ 125°C Mounting Type Surface Mount
Package / Case TO-263-5 Thin Supplier Device Package TO-263-5 Thin
