Download Datasheet

LMZ10501SHX/NOPB

Texas Instruments OEM P/N：LMZ10501SHX/NOPB
rohs compliant DC DC CONVERTER 0.6-3.6V

28,480 pcs

N/A

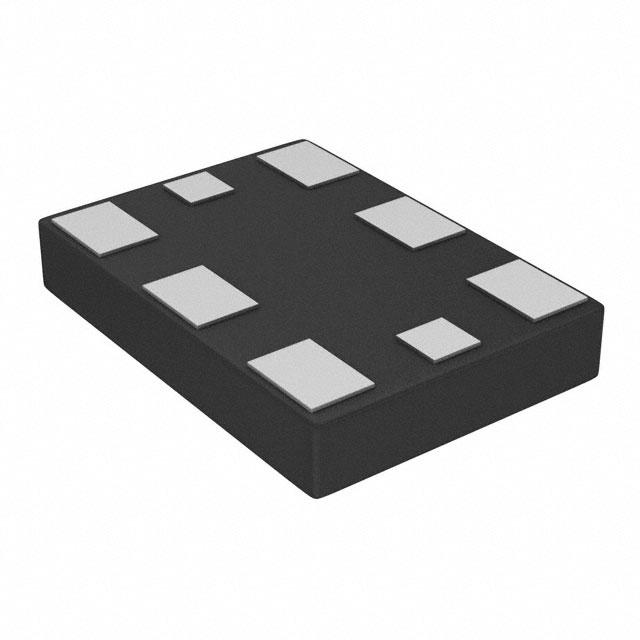

8-SMD Module

Price: N/A
QUICK RFQ

Specifications

Series SIMPLE SWITCHER® Type Non-Isolated PoL Module
Number of Outputs 1 Voltage - Input (Min) 2.7V
Voltage - Input (Max) 5.5V Voltage - Output 1 0.6 ~ 3.6V
Voltage - Output 2 - Voltage - Output 3 -
Voltage - Output 4 - Current - Output (Max) 1A
Power (Watts) - Voltage - Isolation -
Applications ITE (Commercial) Features OCP, OTP, UVLO
Operating Temperature -40°C ~ 125°C Efficiency 95%
Mounting Type Surface Mount Package / Case 8-SMD Module
Size / Dimension 0.12" L x 0.10" W x 0.06" H (3.0mm x 2.6mm x 1.5mm) Supplier Device Package -
Control Features Enable, Active High Approval Agency -
Standard Number -
