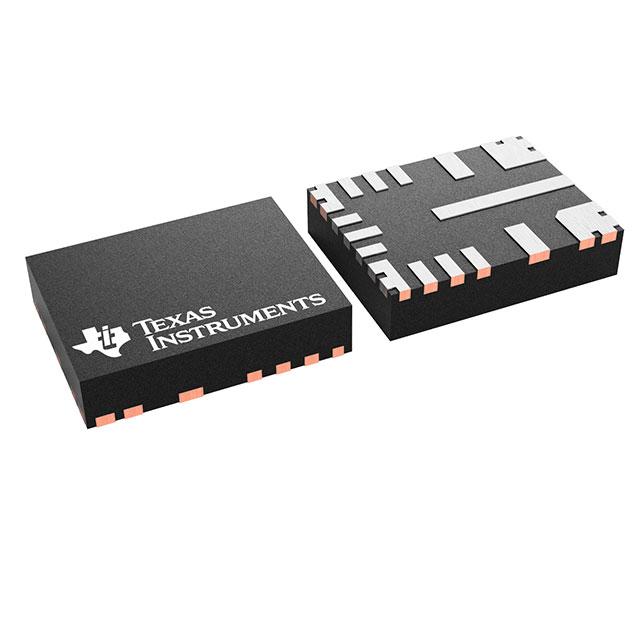

LM61480RPHR

Texas Instruments OEM P/N：LM61480RPHR
IC REG BUCK ADJ 8A 16VQFN

15,240 pcs

N/A

16-PowerVFQFN

$2.182 (For reference only.)
QUICK RFQ

Specifications

Series - Function Step-Down
Output Configuration Positive Topology Buck
Output Type Adjustable Number of Outputs 1
Voltage - Input (Min) 3V Voltage - Input (Max) 36V
Voltage - Output (Min/Fixed) 1V Voltage - Output (Max) 34.2V
Current - Output 8A Frequency - Switching 400kHz, 2.2MHz, 200kHz ~ 2.2MHz
Synchronous Rectifier No Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Surface Mount Package / Case 16-PowerVFQFN
Supplier Device Package 16-VQFN-HR (4.5x3.5)

Related Products

DRV8144AHQRYJRQ1
DRV8144AHQRYJRQ1

AUTOMOTIVE 40-V 30-A HALF BRIDGE

16-PowerVFQFN View
DRV8144ASQRYJRQ1
DRV8144ASQRYJRQ1

AUTOMOTIVE 40-V 30-A HALF BRIDGE

16-PowerVFQFN View

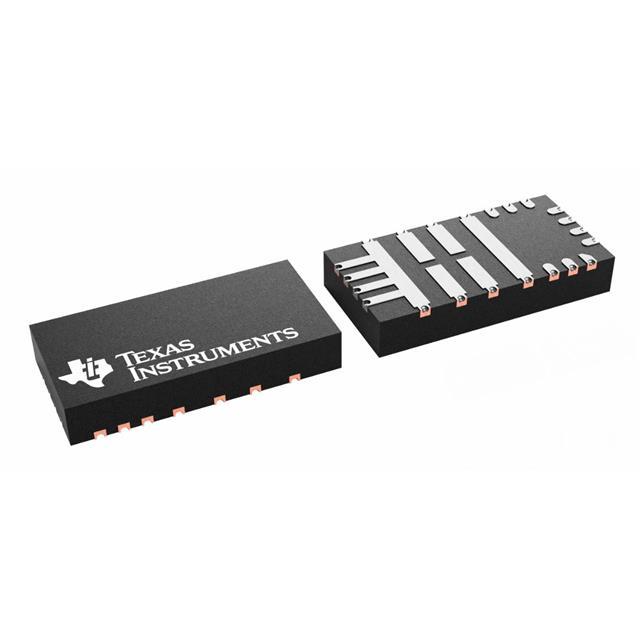

DRV8244SQRYJRQ1
