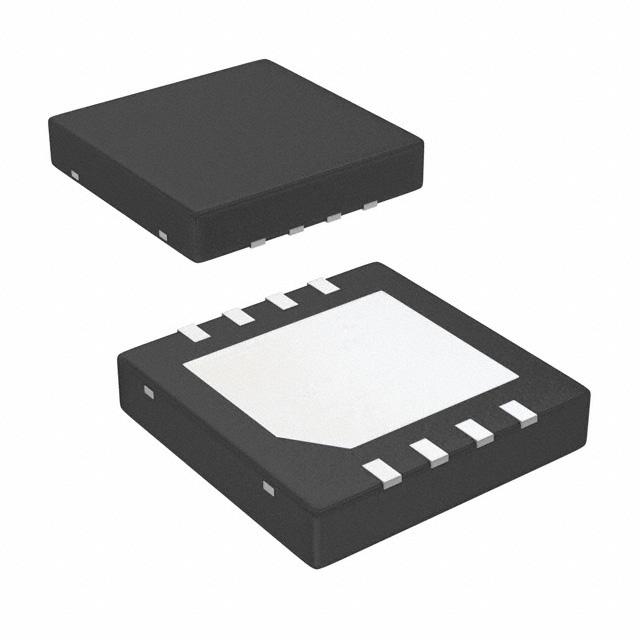

LM5109ASD/NOPB

OEM P/N：LM5109ASD/NOPB

IC GATE DRVR HALF-BRIDGE 8WSON

In Stock Quantity

Lot code

Package

$0.7556 (For reference only.)

QUICK RFQ

* Company

* Full Name

* Your Email

* Contact Number

Message

Series	-	DigiKey Programmable	Not Verified
Driven Configuration	Half-Bridge	Channel Type	Independent
Number of Drivers	2	Gate Type	N-Channel MOSFET
Voltage - Supply	8V ~ 14V	Logic Voltage - VIL, VIH	0.8V, 2.2V
Current - Peak Output (Source, Sink)	1A, 1A	Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	108 V	Rise / Fall Time (Typ)	15ns, 15ns
Operating Temperature	-40°C ~ 125°C (TJ)	Mounting Type	Surface Mount
Package / Case	8-WDFN Exposed Pad	Supplier Device Package	8-WSON (4x4)
