Download Datasheet

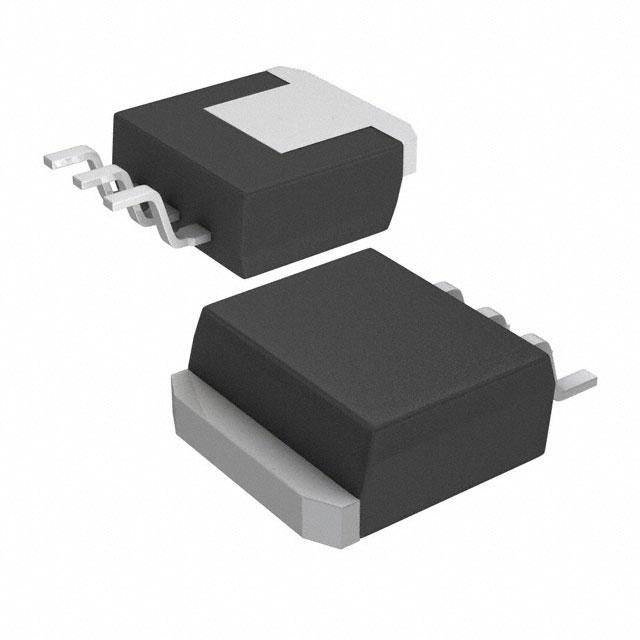

LM317KTTR

Texas Instruments OEM P/N：LM317KTTR
rohs compliant IC REG LIN POS ADJ 1.5A DDPAK

3,580 pcs

N/A

TO-263-4, D²Pak (3 Leads + Tab), TO-263AA

$0.4248 (For reference only.)
QUICK RFQ

Specifications

Series - Output Configuration Positive
Output Type Adjustable Number of Regulators 1
Voltage - Input (Max) 40V Voltage - Output (Min/Fixed) 1.25V
Voltage - Output (Max) 37V Voltage Dropout (Max) -
Current - Output 1.5A Current - Quiescent (Iq) 10 mA
Current - Supply (Max) - PSRR 80dB ~ 65dB (120Hz)
Control Features - Protection Features Over Current, Over Temperature, Short Circuit
Operating Temperature 0°C ~ 125°C Mounting Type Surface Mount
Package / Case TO-263-4, D²Pak (3 Leads + Tab), TO-263AA Supplier Device Package DDPAK/TO-263-3
