Download Datasheet

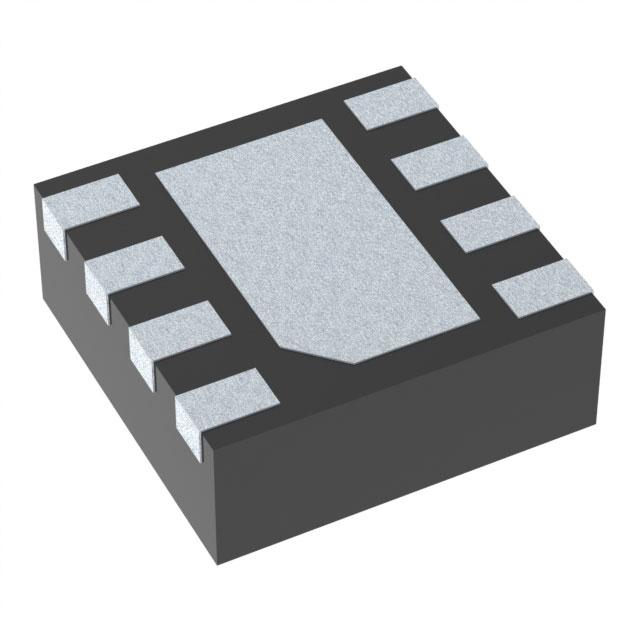

LM27761DSGT

Texas Instruments OEM P/N：LM27761DSGT
rohs compliant IC REG CHRG PUMP ADJ 250MA 8WSON

9,550 pcs

N/A

8-WFDFN Exposed Pad

$0.989 (For reference only.)
QUICK RFQ

Specifications

Series - Function Step-Up/Step-Down
Output Configuration Negative Topology Charge Pump
Output Type Adjustable Number of Outputs 1
Voltage - Input (Min) 2.7V Voltage - Input (Max) 5.5V
Voltage - Output (Min/Fixed) -1.5V Voltage - Output (Max) -5V
Current - Output 250mA Frequency - Switching 2MHz
Synchronous Rectifier No Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount Package / Case 8-WFDFN Exposed Pad
Supplier Device Package 8-WSON (2x2)
