Download Datasheet

LM1117DT-ADJ/NOPB

Texas Instruments OEM P/N：LM1117DT-ADJ/NOPB
rohs compliant IC REG LIN POS ADJ 800MA TO252-3

27,180 pcs

N/A

TO-252-3, DPak (2 Leads + Tab), SC-63

$1.5385 (For reference only.)
QUICK RFQ

Specifications

Series - Output Configuration Positive
Output Type Adjustable Number of Regulators 1
Voltage - Input (Max) 15V Voltage - Output (Min/Fixed) 1.25V
Voltage - Output (Max) 13.8V Voltage Dropout (Max) 1.2V @ 800mA
Current - Output 800mA Current - Quiescent (Iq) 5 mA
Current - Supply (Max) 10 mA PSRR 75dB (120Hz)
Control Features - Protection Features Over Current, Over Temperature
Operating Temperature 0°C ~ 125°C Mounting Type Surface Mount
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63 Supplier Device Package TO-252-3

Related Products

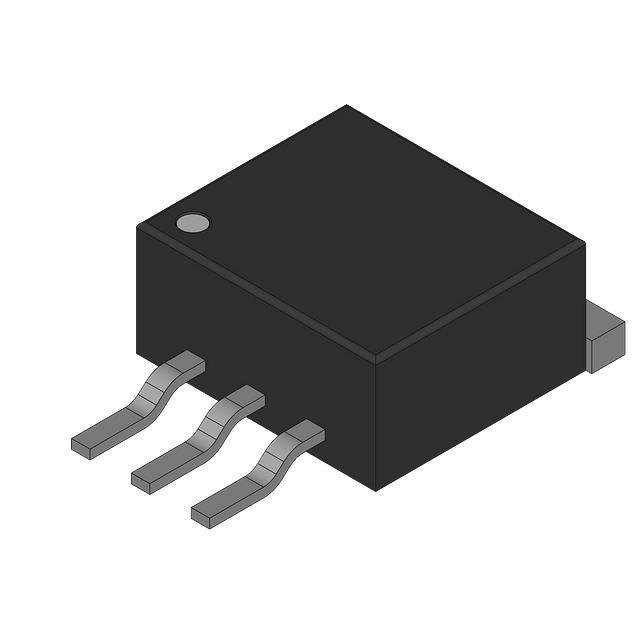

TL1431CKTPR
