Texas Instruments / DRV8436PPWPR
Download Datasheet

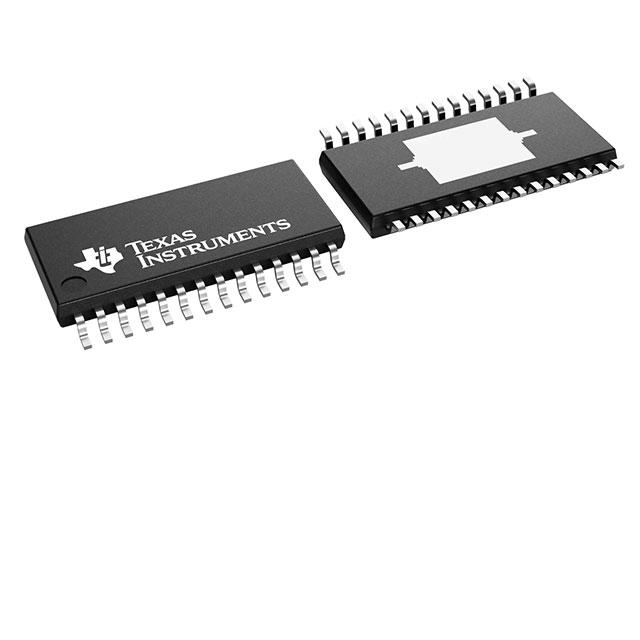

DRV8436PPWPR
OEM P/N：DRV8436PPWPR
48-V, 1.5-A BIPOLAR STEPPER OR D
In Stock Quantity
8,920 pcs
Lot code
N/A
Package
24-PowerTSSOP (0.173", 4.40mm Width)
$1.5232
(For reference only.)
-
+
QUICK RFQ
* Company
* Full Name
* Your Email
* Contact Number
Message
Get Exact Quote
Specifications
Series
-
Motor Type - Stepper
Bipolar
Motor Type - AC, DC
Brushed DC
Function
Driver - Fully Integrated, Control and Power Stage
Output Configuration
Half Bridge (4)
Interface
PWM
Technology
NMOS
Step Resolution
-
Applications
Camera, Printer
Current - Output
1.5A
Voltage - Supply
0V ~ 5.3V
Voltage - Load
4.5V ~ 48V
Operating Temperature
-40°C ~ 125°C (TA)
Mounting Type
Surface Mount
Package / Case
24-PowerTSSOP (0.173", 4.40mm Width)
Supplier Device Package
24-HTSSOP
