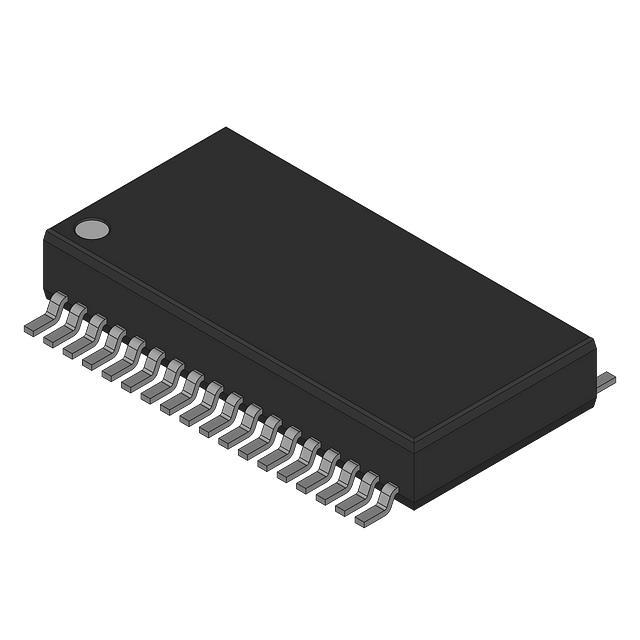

DRV8432DKD

Texas Instruments OEM P/N：DRV8432DKD
rohs compliant IC BRIDGE DRIVER PAR 36HSSOP

7,820 pcs

N/A

36-BSSOP (0.433", 11.00mm Width) Exposed Pad

$13.923 (For reference only.)
QUICK RFQ

Specifications

Series - Output Configuration Half Bridge (4)
Applications DC Motors, Stepper Motors Interface PWM
Load Type Inductive Technology Power MOSFET
Rds On (Typ) 110mOhm LS, 110mOhm HS Current - Output / Channel 7A
Current - Peak Output 12A Voltage - Supply 10.8V ~ 13.2V
Voltage - Load 0V ~ 52.5V Operating Temperature -40°C ~ 150°C (TJ)
Features Status Flag Fault Protection Current Limiting, Over Temperature, Short Circuit, UVLO
Mounting Type Surface Mount Package / Case 36-BSSOP (0.433", 11.00mm Width) Exposed Pad
Supplier Device Package 36-HSSOP
