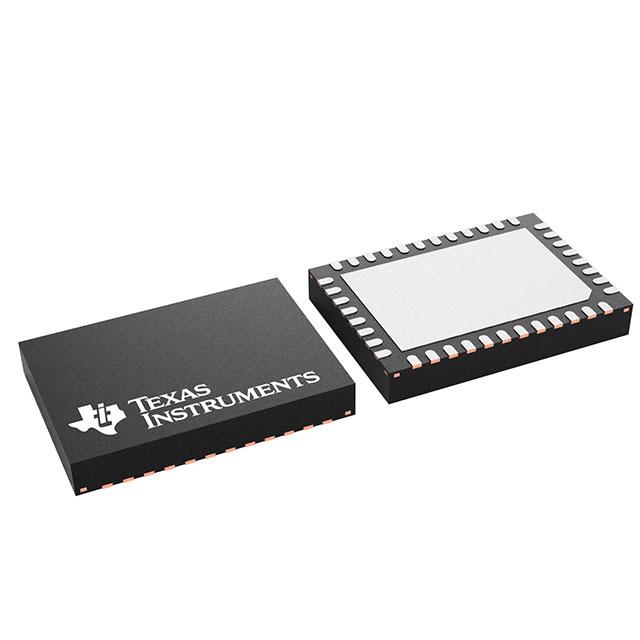

DRV8316RRGFR

Texas Instruments OEM P/N：DRV8316RRGFR
40-V MAX 8-A PEAK 3-PHASE MOTOR

28,490 pcs

N/A

40-VFQFN Exposed Pad

$2.2391 (For reference only.)
QUICK RFQ

Specifications

Series - Motor Type - Stepper Multiphase
Motor Type - AC, DC Brushless DC (BLDC) Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (3) Interface PWM, SPI
Technology Power MOSFET Step Resolution -
Applications Camera, Printer Current - Output 8A
Voltage - Supply 4.5V ~ 35V Voltage - Load 4.5V ~ 35V
Operating Temperature -40°C ~ 125°C (TA) Mounting Type Surface Mount
Package / Case 40-VFQFN Exposed Pad Supplier Device Package 40-VQFN (7x5)
