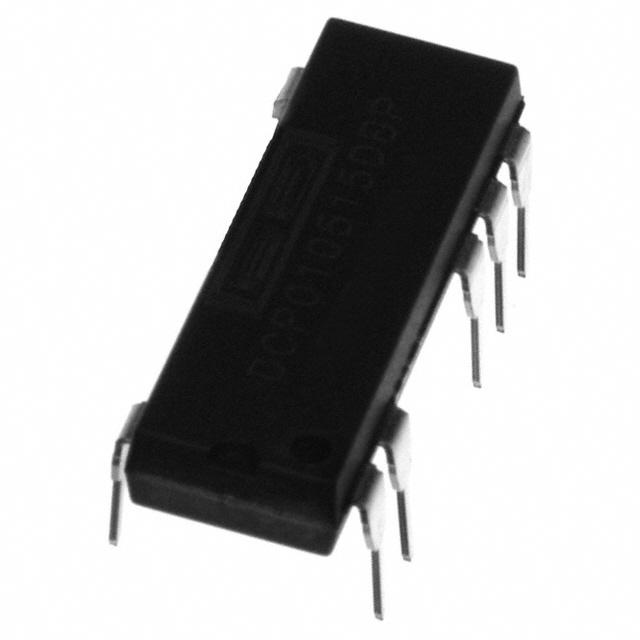

DCP010512DBPG4

Texas Instruments OEM P/N：DCP010512DBPG4
rohs compliant DC DC CONVERTER +/-12V 1W

13,900 pcs

N/A

14-DIP (0.300", 7.62mm), 7 Leads

Price: N/A
QUICK RFQ

Specifications

Series DCP01B (1W) Type Isolated Module
Number of Outputs 2 Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V Voltage - Output 1 12V
Voltage - Output 2 -12V Voltage - Output 3 -
Voltage - Output 4 - Current - Output (Max) 42mA, 42mA
Power (Watts) 1 W Voltage - Isolation 1 kV
Applications ITE (Commercial) Features OTP, SCP
Operating Temperature -40°C ~ 100°C Efficiency 82%
Mounting Type Through Hole Package / Case 14-DIP (0.300", 7.62mm), 7 Leads
Size / Dimension 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm) Supplier Device Package 7-PDIP
Control Features Enable, Active High Approval Agency -
Standard Number -
