Download Datasheet

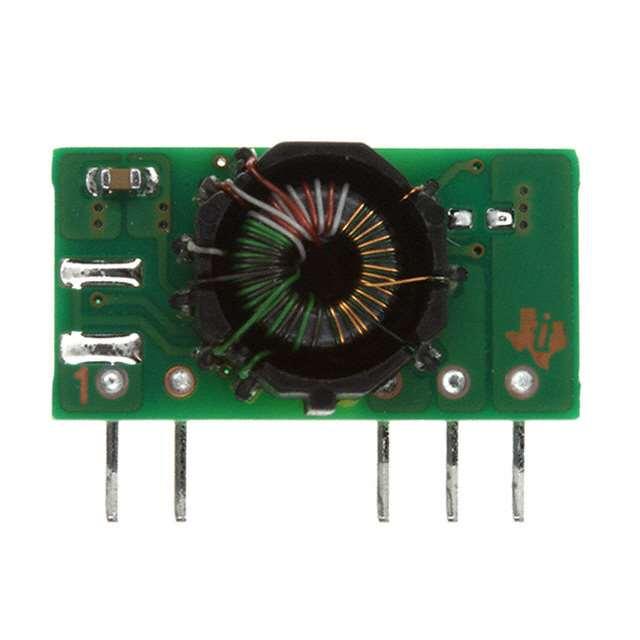

DCH010505DN7

Texas Instruments OEM P/N：DCH010505DN7
rohs compliant DC DC CONVERTER +/-5V 1W

29,090 pcs

N/A

7-SIP Module, 5 Leads

$9.4095 (For reference only.)
QUICK RFQ

Specifications

Series DCH01 (1W) Type Isolated Module
Number of Outputs 2 Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V Voltage - Output 1 5V
Voltage - Output 2 -5V Voltage - Output 3 -
Voltage - Output 4 - Current - Output (Max) 100mA, 100mA
Power (Watts) 1 W Voltage - Isolation 3 kV
Applications ITE (Commercial) Features -
Operating Temperature -40°C ~ 85°C Efficiency 72%
Mounting Type Through Hole Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.30" W x 0.40" H (19.6mm x 7.6mm x 10.2mm) Supplier Device Package -
Control Features - Approval Agency -
Standard Number -

Related Products

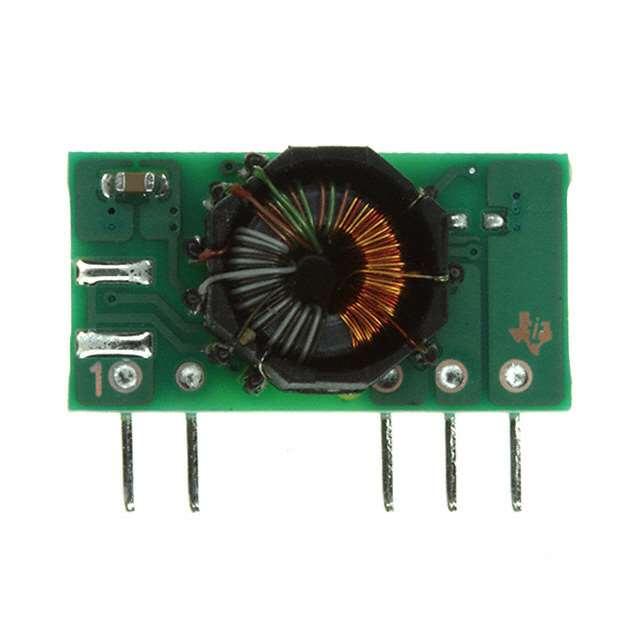

DCH010512DN7
DCH010512DN7

DC DC CONVERTER +/-12V 1W

7-SIP Module, 5 Leads View

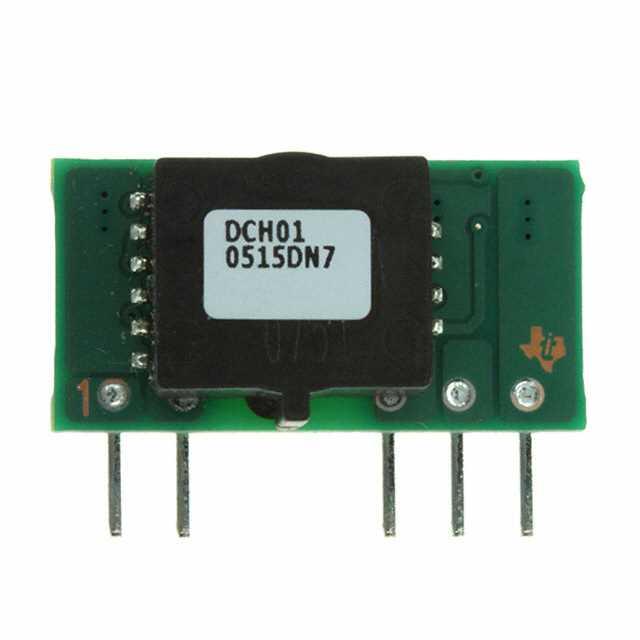

DCH010515DN7
