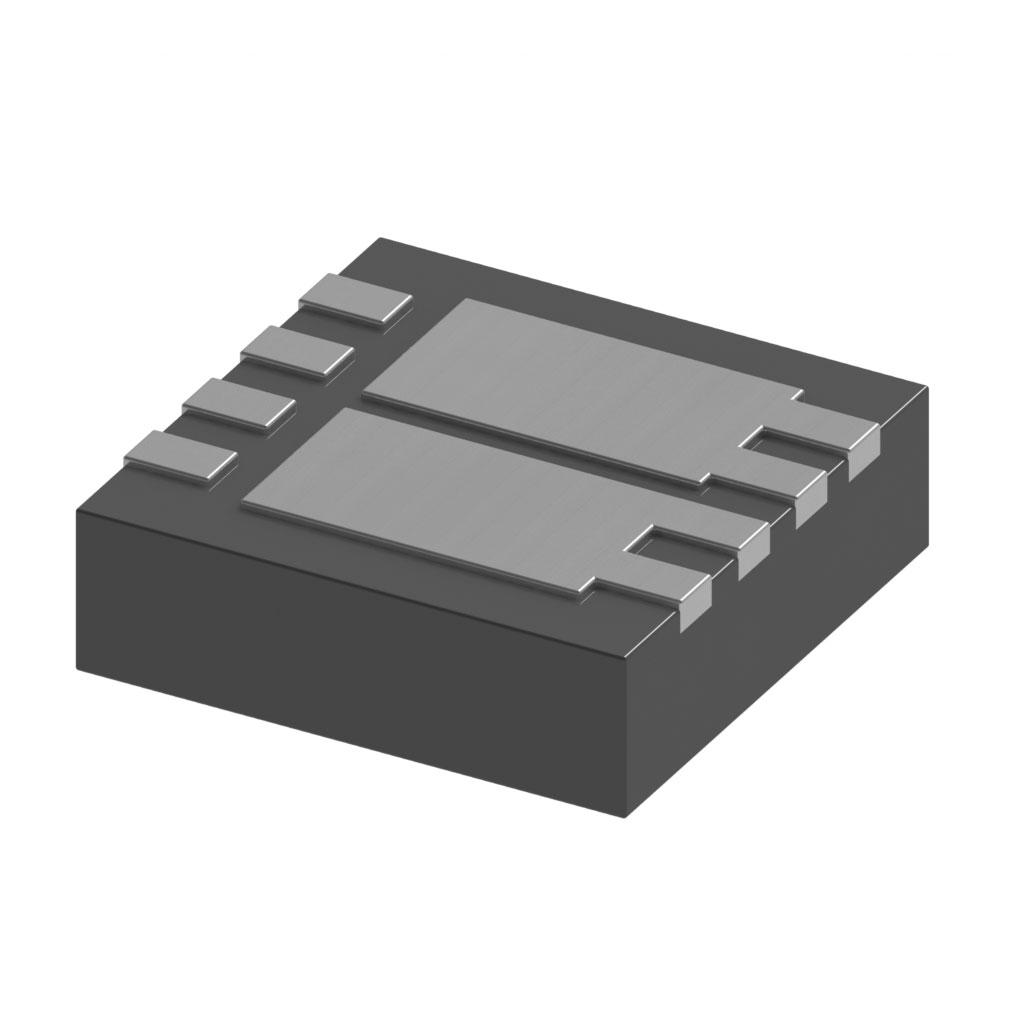

CSD87503Q3E

OEM P/N：CSD87503Q3E

MOSFET 2N-CH 30V 10A 8VSON

In Stock Quantity

Lot code

Package

$0.5769 (For reference only.)

QUICK RFQ

* Company

* Full Name

* Your Email

* Contact Number

Message

Series	NexFET™	Technology	MOSFET (Metal Oxide)
Configuration	2 N-Channel (Dual) Common Source	FET Feature	-
Drain to Source Voltage (Vdss)	30V	Current - Continuous Drain (Id) @ 25°C	10A (Ta)
Rds On (Max) @ Id, Vgs	13.5mOhm @ 6A, 10V	Vgs(th) (Max) @ Id	2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	17.4nC @ 4.5V	Input Capacitance (Ciss) (Max) @ Vds	1020pF @ 15V
Power - Max	15.6W	Operating Temperature	-55°C ~ 150°C (TJ)
Grade	-	Qualification	-
Mounting Type	Surface Mount	Package / Case	8-PowerVDFN
Supplier Device Package	8-VSON (3.3x3.3)
