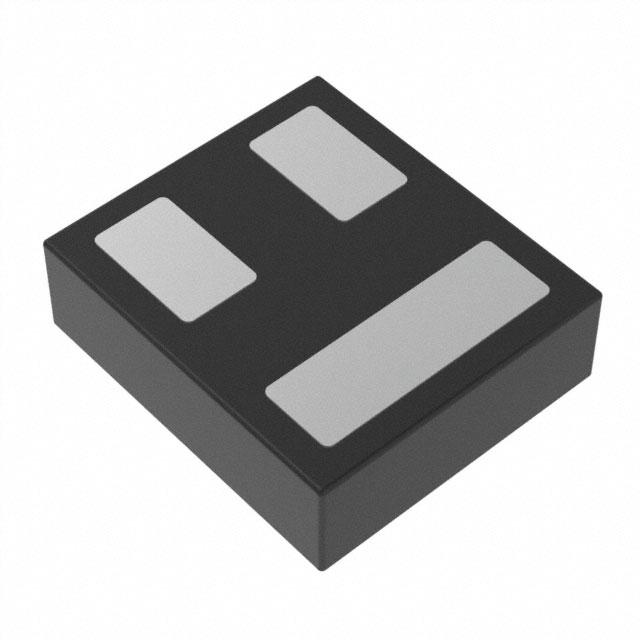

CSD25501F3

Texas Instruments OEM P/N：CSD25501F3
rohs compliant MOSFET P-CH 20V 3.6A 3LGA

29,380 pcs

N/A

3-XFLGA

$0.0814 (For reference only.)
QUICK RFQ

Specifications

Series FemtoFET™ FET Type P-Channel
Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 20 V
Current - Continuous Drain (Id) @ 25°C 3.6A (Ta) Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4.5V
Rds On (Max) @ Id, Vgs 76mOhm @ 400mA, 4.5V Vgs(th) (Max) @ Id 1.05V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 1.33 nC @ 4.5 V Vgs (Max) -20V
Input Capacitance (Ciss) (Max) @ Vds 385 pF @ 10 V FET Feature -
Power Dissipation (Max) 500mW (Ta) Operating Temperature -55°C ~ 150°C (TJ)
Grade - Qualification -
Mounting Type Surface Mount Supplier Device Package 3-LGA (0.73x0.64)
Package / Case 3-XFLGA
