Download Datasheet

CSD22205LT

Texas Instruments OEM P/N：CSD22205LT
rohs compliant MOSFET P-CH 8V 7.4A 4PICOSTAR

29,140 pcs

N/A

4-XFLGA

$0.575 (For reference only.)
QUICK RFQ

Specifications

Series NexFET™ FET Type P-Channel
Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 8 V
Current - Continuous Drain (Id) @ 25°C 7.4A (Ta) Drive Voltage (Max Rds On, Min Rds On) 1.5V, 4.5V
Rds On (Max) @ Id, Vgs 9.9mOhm @ 1A, 4.5V Vgs(th) (Max) @ Id 1.05V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 8.5 nC @ 4.5 V Vgs (Max) -6V
Input Capacitance (Ciss) (Max) @ Vds 1390 pF @ 4 V FET Feature -
Power Dissipation (Max) 600mW (Ta) Operating Temperature -55°C ~ 150°C (TJ)
Grade - Qualification -
Mounting Type Surface Mount Supplier Device Package 4-PICOSTAR
Package / Case 4-XFLGA

Related Products

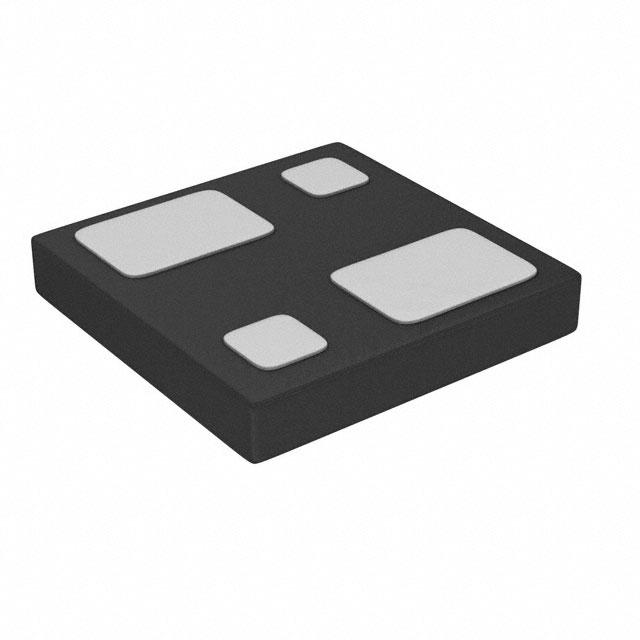

CSD85302L
