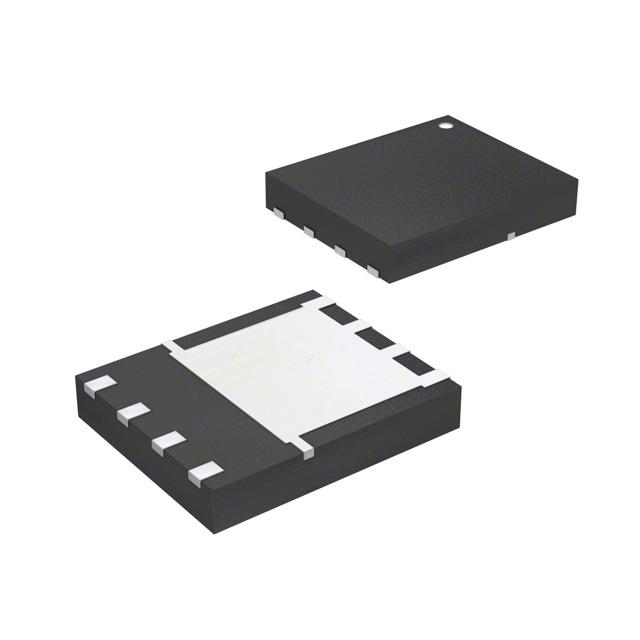

CSD19532Q5B

Texas Instruments OEM P/N：CSD19532Q5B
rohs compliant MOSFET N-CH 100V 100A 8VSON

19,600 pcs

N/A

8-PowerTDFN

$0.9793 (For reference only.)
QUICK RFQ

Specifications

Series NexFET™ FET Type N-Channel
Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 100 V
Current - Continuous Drain (Id) @ 25°C 100A (Ta) Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
Rds On (Max) @ Id, Vgs 4.9mOhm @ 17A, 10V Vgs(th) (Max) @ Id 3.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 62 nC @ 10 V Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 4810 pF @ 50 V FET Feature -
Power Dissipation (Max) 3.1W (Ta), 195W (Tc) Operating Temperature -55°C ~ 150°C (TJ)
Grade - Qualification -
Mounting Type Surface Mount Supplier Device Package 8-VSON-CLIP (5x6)
Package / Case 8-PowerTDFN
