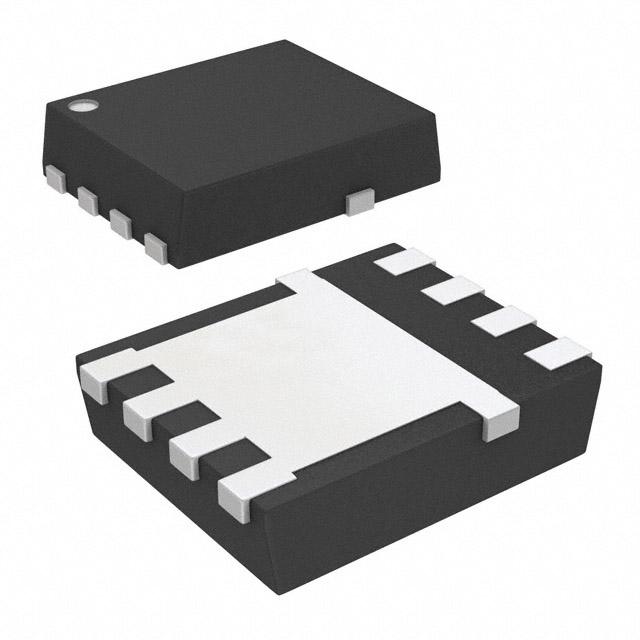

CSD18531Q5A

Texas Instruments OEM P/N：CSD18531Q5A
rohs compliant MOSFET N-CH 60V 19A/100A 8VSON

29,870 pcs

N/A

8-PowerTDFN

$0.6351 (For reference only.)
QUICK RFQ

Specifications

Series NexFET™ FET Type N-Channel
Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 60 V
Current - Continuous Drain (Id) @ 25°C 19A (Ta), 100A (Tc) Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 4.6mOhm @ 22A, 10V Vgs(th) (Max) @ Id 2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 43 nC @ 10 V Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 3840 pF @ 30 V FET Feature -
Power Dissipation (Max) 3.1W (Ta), 156W (Tc) Operating Temperature -55°C ~ 150°C (TJ)
Grade - Qualification -
Mounting Type Surface Mount Supplier Device Package 8-VSONP (5x6)
Package / Case 8-PowerTDFN
